1057277-1

Active

TE Connectivity AMP Connectors

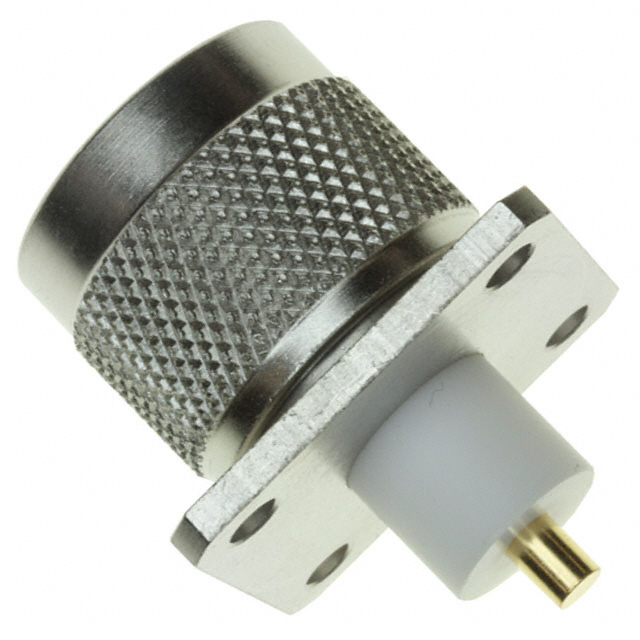

CONN N RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN N RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1057277-1

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN N RCPT STR 50 OHM SOLDER

Part	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Dielectric Material	Voltage Rating	Center Contact Material	Contact Termination	Number of Ports	Mating Cycles	Body Finish	Mounting Feature	Impedance	Shield Termination	Connector Type	Features	Center Contact Plating	Frequency - Max [Max]	Housing Color
TE Connectivity AMP Connectors 1057277-1	Brass	-65 ░C	165 °C	N Type	Polytetrafluoroethylene (PTFE)	250 VDC	Brass	Solder	1	500	Nickel	Flange	50 Ohms	Solder	Male Pin, Receptacle	Extended Insulation	Gold	11 GHz	Silver

General part information

N Type Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder
