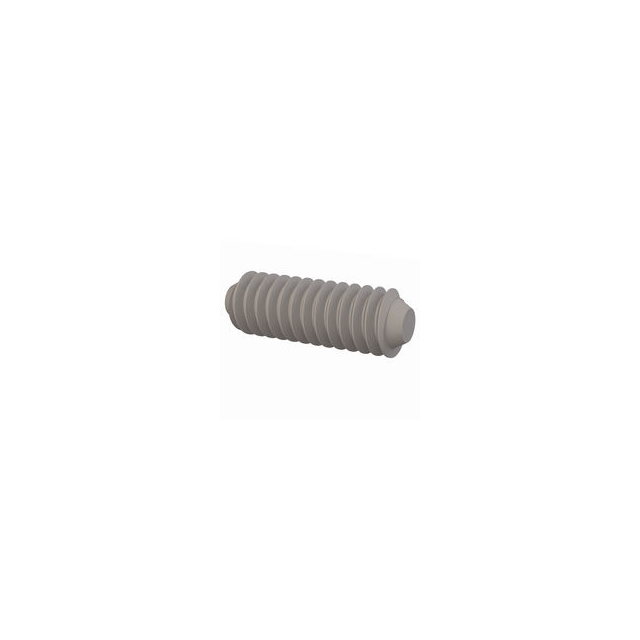

3825020075SD
ActiveEssentra Components
THREADED STUD, 1/4-20 THREAD, 3/
3825020075SD
ActiveEssentra Components
THREADED STUD, 1/4-20 THREAD, 3/
Description
General part information
3825020075 Series
1/4"-20 Set Screw Drive Nylon
Technical Specifications
Parameters and characteristics for this part
| Specification | 3825020075SD |
|---|---|
| Length - Below Head | 0.75 in |
| Length - Overall | 0.75 in |
| Length - Overall (Max) | 0.75 in |
| Length - Overall (Min) | 0.75 in |
| Material | Nylon |
| Thread Pitch (TPI) | 20 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Set Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
