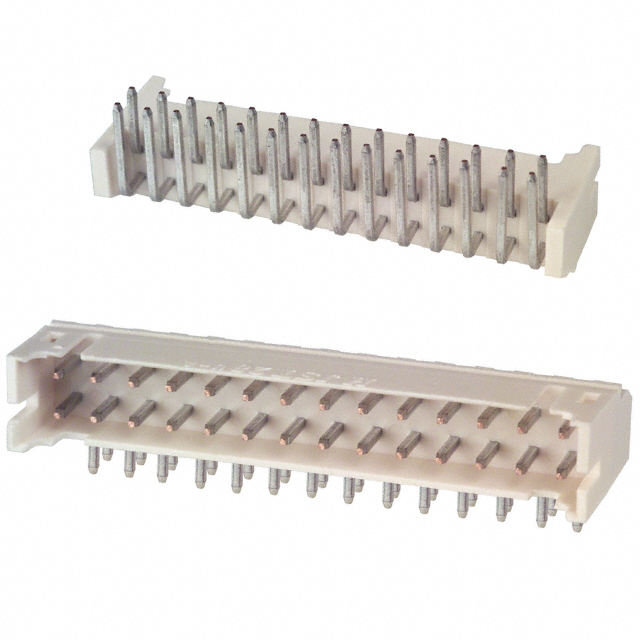

S28B-PHDSS

Active

JST Sales America Inc.

CONN HEADER R/A 28POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 28POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S28B-PHDSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.114 in
Contact Length - Mating	2.9 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Style	Insulation Height	Insulation Height	Number of Positions	Contact Material	Insulation Color	Mounting Type	Contact Length - Mating	Contact Length - Mating	Termination	Contact Shape	Contact Length - Post	Contact Length - Post	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Current Rating (Amps)	Number of Rows	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Number of Positions Loaded	Connector Type
JST Sales America Inc. S28B-PHDSS	Board to Cable/Wire	0.197 in	5 mm	28	Copper Alloy	Natural	Through Hole Right Angle	0.114 in	2.9 mm	Solder	Square	0.118 in	3 mm	Detent Lock	UL94 V-0	-25 °C	85 °C	Shrouded - 4 Wall	3 A	2	Glass Filled Nylon Polyamide (PA)	0.079 in	2 mm	250 VDC	Male Pin	0.079 in	2 mm	Tin	All	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 28 position 0.079" (2.00mm)
