Technical Specifications
Parameters and characteristics for this part
| Specification | ST1PS02D1QTR |
|---|---|
| Current - Output | 400 mA |
| Frequency - Switching | 2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

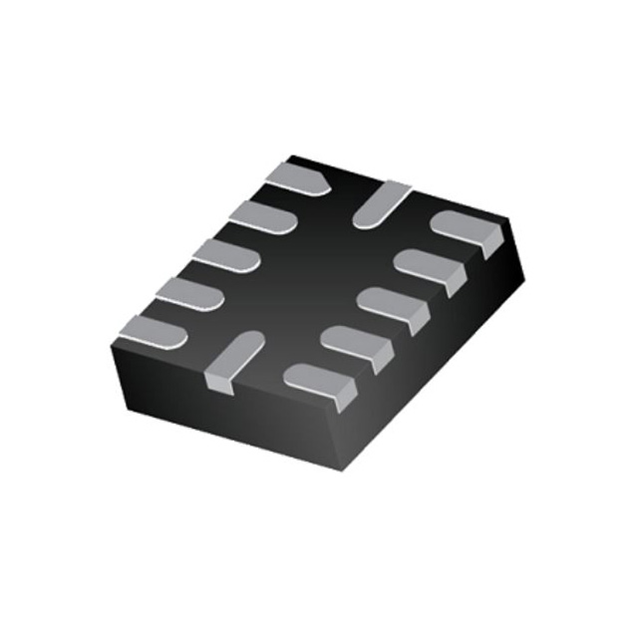

| Package / Case | 12-UFQFN |
| Supplier Device Package | 12-TQFN (1.7x2) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 1.8 V |
| Voltage - Output (Max) [Max] | 1.35 V |
| Voltage - Output (Min/Fixed) | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.87 | |
| 10 | $ 1.68 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.35 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.92 | |||
| Digi-Reel® | 1 | $ 1.87 | ||
| 10 | $ 1.68 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.35 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.92 | |||
| Tape & Reel (TR) | 3000 | $ 0.87 | ||
Description
General part information
ST1PS02 Series
The ST1PS02 is a nano-quiescent miniaturized synchronous step-down converter, which is able to provide up to 400 mA output current with an input voltage ranging from 1.8 V to 5.5 V. This converter is specifically designed for applications where high efficiency, PCB size and thickness are the key factors. The output voltage can be set using three digital control inputs, a VOUT from 1.0 V to 3.3 V can be dynamically selected. Thanks to the enhanced PCC (peak current control) the ST1PS02 reaches very high efficiency conversion using just a 2.2 µH inductor and two small capacitors. The device embeds a controlled load switch to supply a subsystem with same voltage rail. Advanced design circuitry is implemented to minimize the quiescent current. The device is available in thin plastic package.
