82-6153.2122
ActiveEAO

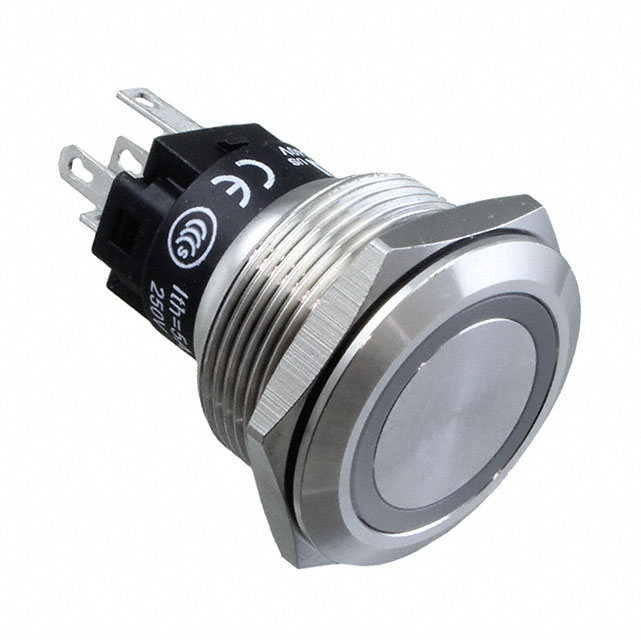

SWITCH PUSHBUTTON SPDT 200MA 24V
Deep-Dive with AI
Search across all available documentation for this part.
82-6153.2122
ActiveEAO
SWITCH PUSHBUTTON SPDT 200MA 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82-6153.2122 | 82-6153 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 200 mA | 3 - 200 mA |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Features | Stainless Steel | Stainless Steel |
| Illumination Type, Color | LED, Blue | LED, Blue, Green/Red, Green, Red, Yellow |
| Illumination Voltage (Nominal) | 6 VAC/DC | 6 - 24 VAC/DC |
| Ingress Protection | IP67, IP65 | IP67, IP65 |
| Mechanical Life | 500000 Cycles | 500000 - 1000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions [diameter] | 22.3 mm | 22.3 mm |
| Switch Function | On-On | On-Mom, On-On |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | Quick Connect, Solder |
| Termination Style | 2.8 mm | 2.8 mm |
| Type | Illuminated, Standard | Illuminated, Standard |
| Voltage Rating - AC | 24 V | 24 - 240 V |
| Voltage Rating - DC | 24 V | 24 - 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.50 | |
| 10 | $ 16.80 | |||
| 25 | $ 16.62 | |||
82-6153 Series
SWITCH PB SPDT 0.2A 24V
| Part | Type | Electrical Life | Ingress Protection | Current Rating (Amps) | Switch Function | Actuator Type | Voltage Rating - DC | Circuit | Mounting Type | Voltage Rating - AC | Illumination Type, Color | Termination Style | Termination Style | Termination Style | Illumination Voltage (Nominal) | Actuator Marking | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-6153.1123 | Illuminated, Standard | 50000 Cycles | IP65, IP67 | 200 mA | On-Mom | Button, Flush, Round | 24 V | SPDT | Panel Mount, Front | 24 V | Blue, LED | 0.11 in | Quick Connect, Solder | 2.8 mm | 12 VAC/DC | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 1000000 Cycles | |
EAO 82-6153.12A4 | Illuminated, Standard | 50000 Cycles | IP65, IP67 | 3 A | On-Mom | Button, Flush, Round | 240 V | SPDT | Panel Mount, Front | 240 V | Green/Red, LED | 0.11 in | Quick Connect, Solder | 2.8 mm | 24 VAC/DC | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 1000000 Cycles | |
EAO 82-6153.1000 | Standard | 50000 Cycles | IP65, IP67 | 200 mA | On-Mom | Button, Flush, Round | 24 V | SPDT | Panel Mount, Front | 24 V | 0.11 in | Quick Connect, Solder | 2.8 mm | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 1000000 Cycles | Stainless Steel | ||
EAO 82-6153.2134 | Illuminated, Standard | 50000 Cycles | IP65, IP67 | 200 mA | On-On | Button, Flush, Round | 24 V | SPDT | Panel Mount, Front | 24 V | Green, LED | 0.11 in | Quick Connect, Solder | 2.8 mm | 24 VAC/DC | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 500000 Cycles | Stainless Steel |
EAO 82-6153.2124 | Illuminated, Standard | 50000 Cycles | IP65, IP67 | 200 mA | On-On | Button, Flush, Round | 24 V | SPDT | Panel Mount, Front | 24 V | Blue, LED | 0.11 in | Quick Connect, Solder | 2.8 mm | 24 VAC/DC | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 500000 Cycles | Stainless Steel |
EAO 82-6153.1114 | Illuminated, Standard | 50000 Cycles | IP65, IP67 | 200 mA | On-Mom | Button, Flush, Round | 24 V | SPDT | Panel Mount, Front | 24 V | LED, Red | 0.11 in | Quick Connect, Solder | 2.8 mm | 24 VAC/DC | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 1000000 Cycles | Stainless Steel |
EAO 82-6153.2122 | Illuminated, Standard | 50000 Cycles | IP65, IP67 | 200 mA | On-On | Button, Flush, Round | 24 V | SPDT | Panel Mount, Front | 24 V | Blue, LED | 0.11 in | Quick Connect, Solder | 2.8 mm | 6 VAC/DC | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 500000 Cycles | Stainless Steel |
EAO 82-6153.1133 | Illuminated, Standard | 50000 Cycles | IP65, IP67 | 200 mA | On-Mom | Button, Flush, Round | 24 V | SPDT | Panel Mount, Front | 24 V | Green, LED | 0.11 in | Quick Connect, Solder | 2.8 mm | 12 VAC/DC | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 1000000 Cycles | Stainless Steel |
EAO 82-6153.11A4 | Illuminated, Standard | 50000 Cycles | IP65, IP67 | 3 A | On-Mom | Button, Flush, Round | 240 V | SPDT | Panel Mount, Front | 240 V | Green/Red, LED | 0.11 in | Quick Connect, Solder | 2.8 mm | 24 VAC/DC | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 1000000 Cycles | |
EAO 82-6153.2000 | Standard | 50000 Cycles | IP65, IP67 | 200 mA | On-On | Button, Flush, Round | 24 V | SPDT | Panel Mount, Front | 24 V | 0.11 in | Quick Connect, Solder | 2.8 mm | No Marking | 22.3 mm | Silver | 70 °C | -30 ░C | 500000 Cycles |
Description
General part information
82-6153 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
