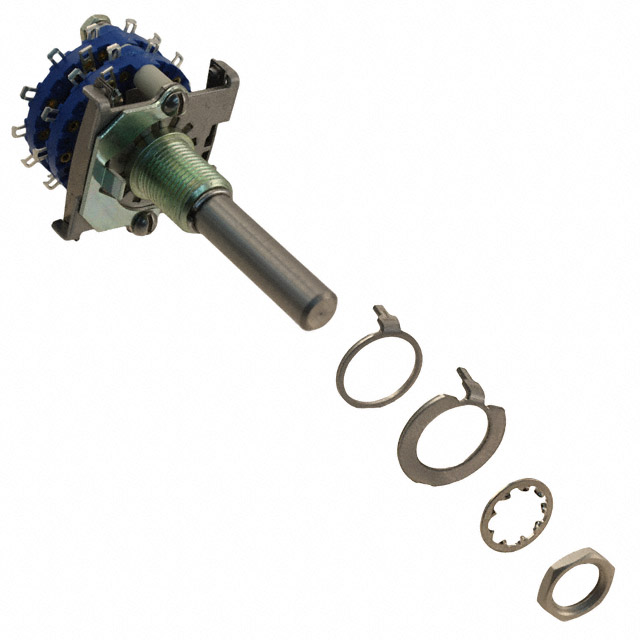

D2D0406N

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 250MA 115V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 250MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	D2D0406N

Actuator Length [x]	1 in
Actuator Type	Round
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	250 mA, 550 mA
Depth Behind Panel [z]	18.34 mm
Index Stops	Adjustable
Number of Decks	2
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Index Stops	Number of Positions [Max]	Number of Positions [Min]	Number of Poles per Deck	Depth Behind Panel [z]	Termination Style	Contact Material	Voltage Rating - AC	Contact Timing	Voltage Rating - DC	Actuator Type	Actuator Type [diameter]	Angle of Throw	Contact Finish	Current Rating (Amps)	Circuit per Deck [custom]	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Number of Decks
ELECTROSWITCH D2D0406N	Adjustable	6	2	2	18.34 mm	Solder Lug	Brass	115 V	Non-Shorting	28 V	Round	6.35 mm	30 °	Silver	250 mA 550 mA	DP6T	9.78 mm	1 in	2
ELECTROSWITCH D2D0406S	Adjustable	6	2	2	18.34 mm	Solder Lug	Brass	115 V	Shorting	28 V	Round	6.35 mm	30 °	Silver	250 mA 550 mA	DP6T	9.78 mm	1 in	2
