4828-6004-CP

Active

3M (TC)

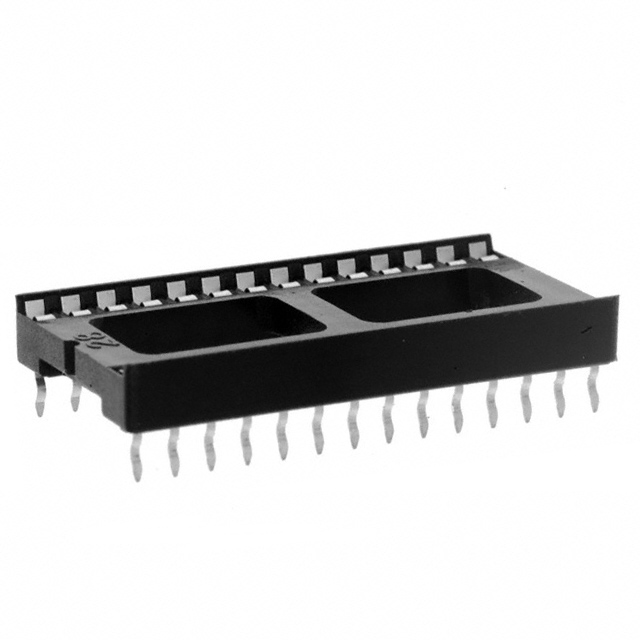

IC & COMPONENT SOCKET, 28 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE

Search across all available documentation for this part.

Active

3M (TC)

IC & COMPONENT SOCKET, 28 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE

Technical Specifications

Parameters and characteristics for this part

Specification	4828-6004-CP

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	35.4 µin
Contact Finish Thickness - Mating	0.9 µm
Contact Finish Thickness - Post	35 µin
Contact Finish Thickness - Post	0.9 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Current Rating (Amps)	1 A
Features	Open Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Number of Positions or Pins (Grid)	Mounting Type	Features	Contact Material - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Current Rating (Amps)	Termination	Pitch - Post	Pitch - Post	Type	Type	Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
3M (TC) 4828-3004-CP	28	Through Hole	Open Frame	Phosphor Bronze	-25 °C	85 °C	Phosphor Bronze	35.4 µin	0.9 µm	0.1 in	2.54 mm	UL94 V-0	1 A	Solder	2.54 mm	0.1 in	0.3 "	7.62 mm	DIP	Tin	35 µin	0.9 µm
3M (TC) 4828-6004-CP	28	Through Hole	Open Frame	Phosphor Bronze	-25 °C	85 °C	Phosphor Bronze	35.4 µin	0.9 µm	0.1 in	2.54 mm	UL94 V-0	1 A	Solder	2.54 mm	0.1 in	0.6 in	15.24 mm	DIP	Tin	35 µin	0.9 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The 4800 series formed DIP Socket with dual-wipe stamped. It has dual-leaf high compression contact provides reliable termination.
