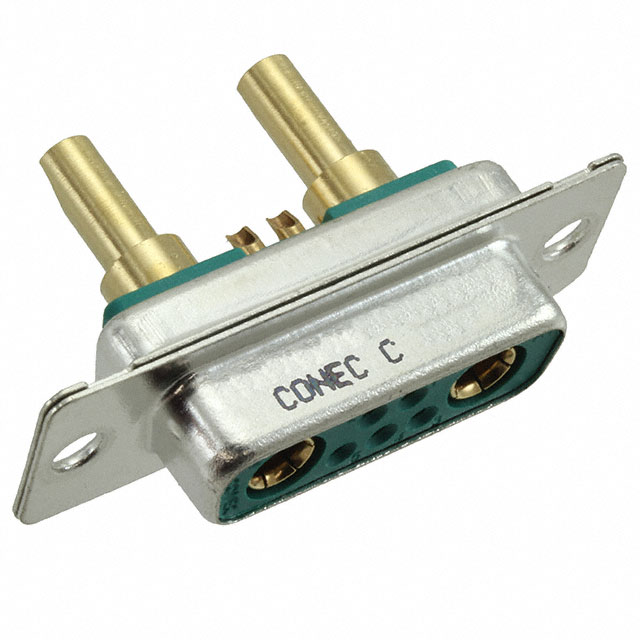

3007W2SCM42A10X

Active

Amphenol CONEC

CONN D-SUB RCPT 7POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

3007W2SCM42A10X

Active

Amphenol CONEC

CONN D-SUB RCPT 7POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3007W2SCM42A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2 (DA, A) - 7W2
Voltage Rating	250 VDC

3007W2S Series

Part	Connector Type	Mounting Type	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Contact Type	Flange Feature	Number of Rows	Shell Size, Connector Layout	Current Rating (Amps)	Dielectric Material	Connector Style	Color	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Termination
Amphenol CONEC 3007W2SAR71E20X	Receptacle Female Sockets
Amphenol CONEC 3007W2SAR68C20X	Receptacle Female Sockets
Amphenol CONEC 3007W2SCM42A10X	Receptacle Female Sockets	Free Hanging (In-Line)	UL94 V-0	7	2	Gold	Signal and Power	Housing/Shell (Unthreaded)	2	2 (DA A) - 7W2	20 A	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Green	0.76 Ám	30 Áin	250 VDC	-55 °C	125 °C	Copper Alloy
Amphenol CONEC 3007W2SCR76F20X	Receptacle Female Sockets
Amphenol CONEC 3007W2SAR99F20X	Receptacle Female Sockets	Through Hole	UL94 V-0			Gold		4-40	2	2 (DA A) - 7W2	7.5 A	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Green	0.203 çm	8 çin	250 VDC			Copper Alloy	7	Solder
Amphenol CONEC 3007W2SAP99A30X	Receptacle Female Sockets
Amphenol CONEC 3007W2SAM61A10X	Receptacle Female Sockets	Free Hanging (In-Line)		7	2	Gold	Signal and Power	Housing/Shell (Unthreaded)	2	2 (DA A) - 7W2			Combo D-Sub					-55 °C	125 °C
Amphenol CONEC 3007W2SAR71AA0X	Receptacle Female Sockets
Amphenol CONEC 3007W2SAT75N40X	Receptacle Female Sockets
Amphenol CONEC 3007W2SAR99C60X	Receptacle Female Sockets	Through Hole	UL94 V-0			Gold		4-40 Board Side	2	2 (DA A) - 7W2	7.5 A	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Green	0.203 çm	8 çin	250 VDC			Copper Alloy	7	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.08
		10	$ 13.93
		30	$ 13.21
		60	$ 13.01
		120	$ 11.48
		270	$ 10.72
		510	$ 10.49

Description

General part information

3007W2S Series

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
