3-128-295

Active

SCHURTER Inc.

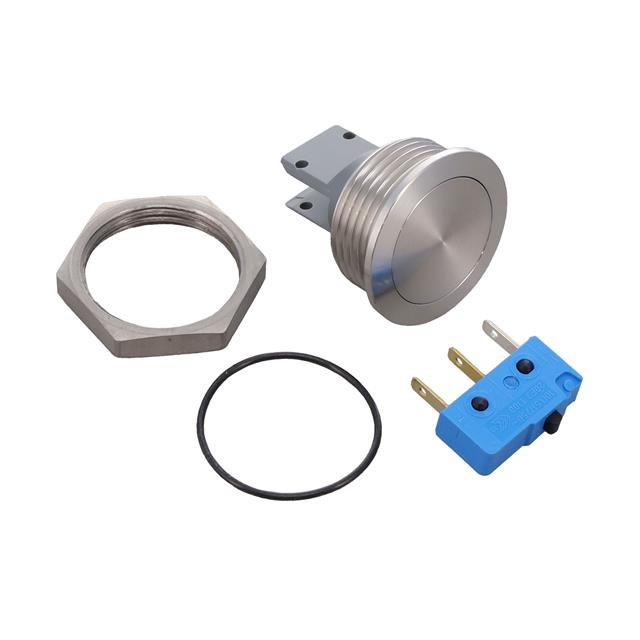

SWITCH PUSHBUTTON SPDT 10A 125V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	3-128-295

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	10 A
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	24.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal
Voltage Rating - AC	125 V

SWITCH PUSHBUTTON SPDT 10A 125V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Mechanical Life	Electrical Life	Actuator Marking	Switch Function	Voltage Rating - AC	Mounting Type	Ingress Protection	Current Rating (Amps)	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Termination Style	Type	Circuit
SCHURTER Inc. 3-128-295	-25 °C	85 °C	Button, Flush, Round	1500000 Cycles	200000 Cycles	No Marking	On-Mom	125 V	Panel Mount, Front	IP40	10 A	Silver	24.1 mm	Quick Connect - 0.110" (2.8mm)	Anti-Vandal	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.71
LCSC	N/A	1	$ 0.00

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
