SSI-LXH312ID-150

Active

Lumex Opto/Components Inc.

LED 3MM HI-I RED DIFF6"LDS PNLMT

Deep-Dive with AI

Search across all available documentation for this part.

SSI-LXH312ID-150

Active

Lumex Opto/Components Inc.

LED 3MM HI-I RED DIFF6"LDS PNLMT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.18
		10	$ 0.75
		200	$ 0.55
		600	$ 0.51
		1000	$ 0.42
		2000	$ 0.40
		5000	$ 0.39
		10000	$ 0.38
		25000	$ 0.37

Description

General part information

SSI-LXH312 Series

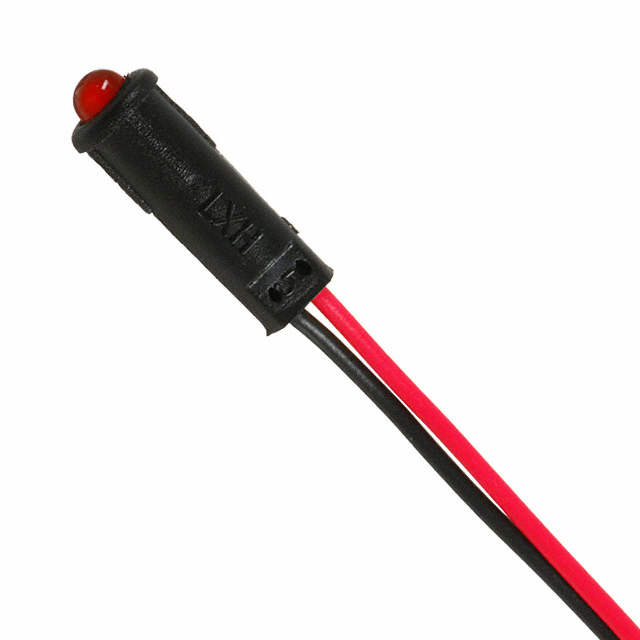

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSI-LXH312ID-150	SSI-LXH312 Series

Current	30 mA	25 - 30 mA
Lamp Color	Red	Green, Red, Yellow, Blue
Lens Color	Red	Green, Red, Yellow, Blue
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	30 mcd	30 - 100 mcd
Panel Cutout Dimensions	4.32 mm	0.17 - 8.13 mm
Panel Cutout Dimensions	0.17 in	0.17 - 0.32 in
Panel Cutout Shape	Round	Round
Termination Style	-	Wire Leads - 17" (431.80mm), PC Pin, Wire Leads, Wire Leads - 12" (304.80mm), Wire Leads - 6.000" (152.40mm)
Termination Style	-	9.9 in
Termination Style	-	251.46 mm
Type	LED	LED
Viewing Angle	60 °	60 °
Voltage	2 V	2 - 3.5 V
Wavelength - Peak	635 nm	565 - 635 nm

SSI-LXH312 Series

LED PANEL INDICATOR GREEN 2.1V

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Millicandela Rating	Termination Style	Wavelength - Peak	Lens Transparency	Lens Size	Lens Size	Panel Cutout Shape	Viewing Angle	Type	Lens Color	Lamp Color	Lens Style	Current	Termination Style	Termination Style
Lumex Opto/Components Inc. SSI-LXH312GD-430	4.32 mm	0.17 in	2.1 V	30 mcd	Wire Leads - 17" (431.80mm)	565 nm	Diffused	3 mm	T-1	Round	60 °	LED	Green	Green	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH312GD-150	4.32 mm	0.17 in	2.1 V	30 mcd		565 nm	Diffused	3 mm	T-1	Round	60 °	LED	Green	Green	Round with Domed Top	25 mA
Lumex Opto/Components Inc. SSI-LXH312ID	4.32 mm	0.17 in	2 V	30 mcd	PC Pin	635 nm	Diffused	3 mm	T-1	Round	60 °	LED	Red	Red	Round with Domed Top	30 mA
Lumex Opto/Components Inc. SSI-LXH312YD-150	4.32 mm	0.17 in	2.1 V	30 mcd		585 nm	Diffused	3 mm	T-1	Round	60 °	LED	Yellow	Yellow	Round with Domed Top	30 mA
Lumex Opto/Components Inc. SSI-LXH312GD-250	4.32 mm	0.17 in	2.2 V	30 mcd	Wire Leads	565 nm	Diffused	3 mm	T-1	Round	60 °	LED	Green	Green	Round with Domed Top		9.9 in	251.46 mm
Lumex Opto/Components Inc. SSI-LXH312ID-300	0.17 in, 4.42 mm		2 V	30 mcd	Wire Leads - 12" (304.80mm)	635 nm	Diffused	3 mm	T-1	Round	60 °	LED	Red	Red	Round with Domed Top	30 mA
Lumex Opto/Components Inc. SSI-LXH312USBD-150	8.13 mm	0.32 in	3.5 V	60 mcd			Diffused	3 mm	T-1	Round	60 °	LED	Blue	Blue	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH312SYD-150	0.17 in, 4.42 mm		2 V	100 mcd	Wire Leads - 6.000" (152.40mm)	590 nm	Diffused	3 mm	T-1	Round	60 °	LED	Yellow	Yellow	Round with Domed Top	30 mA
Lumex Opto/Components Inc. SSI-LXH312ID-150	4.32 mm	0.17 in	2 V	30 mcd		635 nm	Diffused	3 mm	T-1	Round	60 °	LED	Red	Red	Round with Domed Top	30 mA
