6500-1051-003

Active

Radiall USA, Inc.

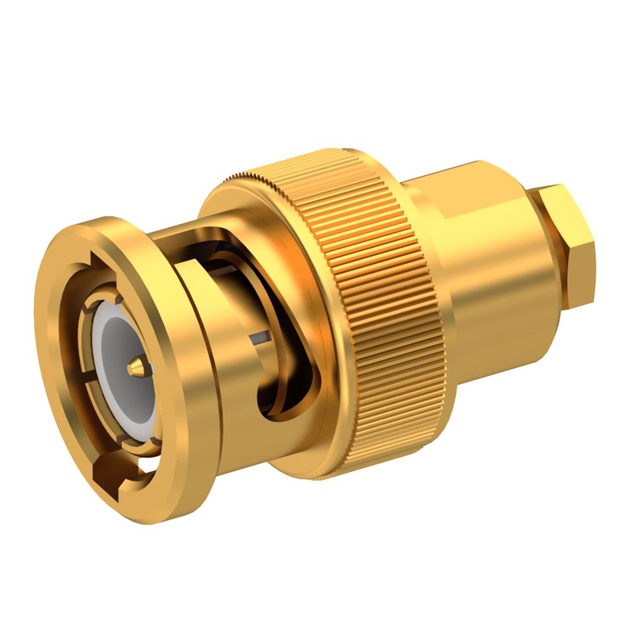

BNC / STRAIGHT PLUG MALE CLAMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT PLUG MALE CLAMP T

Technical Specifications

Parameters and characteristics for this part

Specification	6500-1051-003

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Cable Group	Body Finish	Impedance	Mating Cycles	Connector Style	Fastening Type	Body Material	Contact Termination	Shield Termination	Mounting Type	Center Contact Material	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Dielectric Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type
Radiall USA, Inc. 6500-1051-003	RG-316	Gold	50 Ohms	1000	BNC	Bayonet Lock	Brass	Compression	Clamp	Free Hanging (In-Line)	Beryllium Copper	Gold	4 GHz	1	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Compression
