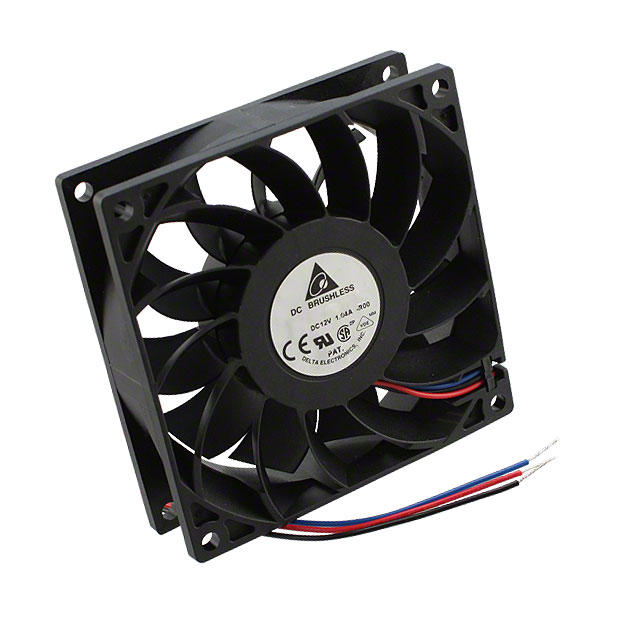

FFB0912SH-R00

Obsolete

Delta Electronics

FAN AXIAL 92X25.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans, Blowers CSA Cert +2

FFB0912SH-R00

Obsolete

Delta Electronics

FAN AXIAL 92X25.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB0912SH-R00

Air Flow	2.52 mł/min
Air Flow	90 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.69 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	50 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	8.28 W
RPM	4100 RPM
Static Pressure	98.6 Pa
Static Pressure	0.396 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	129.73 g
Weight	0.286 lb
Width [y]	25.4 mm

FFB0912 Series

Part	Width [y]	Lifetime @ Temp.	Weight	Weight	Power (Watts)	Material - Blade	Static Pressure	Static Pressure	Noise	Bearing Type	Termination	RPM	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Fan Type	Approval Agency	Current Rating (Amps)	Voltage - Rated
Delta Electronics FFB0912VHE-R00	38 mm	70000 Hrs	198 g	0.437 lb	6 W	Plastic	0.406 in H2O	101.1 Pa	47.5 dB	Ball	3 Wire Leads	3800 RPM	7 V	13.8 VDC	2.39 mł/min	85.5 CFM	Locked Rotor Sensor	70 °C	70 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	0.5 A	12 VDC
Delta Electronics FFB0912VH	25.4 mm	70000 Hrs	129.73 g	0.286 lb	7.2 W	Plastic	0.319 in H2O	79.5 Pa	48.2 dB(A)	Ball	2 Wire Leads	3700 RPM	7 V	13.8 VDC	2.3 m³/min	82 CFM		60 °C	60 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	600 mA	12 VDC
Delta Electronics FFB0912HHE	38 mm	70000 Hrs	198 g	0.437 lb	4.2 W	Plastic	0.298 in H2O	74.2 Pa	42.5 dB(A)	Ball	2 Wire Leads	3200 RPM	7 V	13.8 VDC	2.01 m³/min	71.7 CFM		70 °C	70 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	0.35 A	12 VDC
Delta Electronics FFB0912SH-R00	25.4 mm	70000 Hrs	129.73 g	0.286 lb	8.28 W	Plastic	0.396 in H2O	98.6 Pa	50 dB(A)	Ball	3 Wire Leads	4100 RPM	7 V	13.8 VDC	2.52 mł/min	90 CFM	Locked Rotor Sensor	60 °C	60 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	0.69 A	12 VDC
Delta Electronics FFB0912VH-R00
Delta Electronics FFB0912VH-F00	25.4 mm	70000 Hrs	129.73 g	0.286 lb	7.2 W	Plastic	0.319 in H2O	79.5 Pa	48.2 dB(A)	Ball	3 Wire Leads	3700 RPM	7 V	13.8 VDC	2.3 m³/min	82 CFM	Locked Rotor Protection Speed Sensor (Tach)	60 °C	60 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	600 mA	12 VDC
Delta Electronics FFB0912HHE-R00	38 mm	70000 Hrs	198 g	0.437 lb	4.2 W	Plastic	0.298 in H2O	74.2 Pa	42.5 dB(A)	Ball	3 Wire Leads	3200 RPM	7 V	13.8 VDC	2.01 m³/min	71.7 CFM	Locked Rotor Sensor	70 °C	70 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	0.35 A	12 VDC
Delta Electronics FFB0912SH-F00	25.4 mm	70000 Hrs	129.73 g	0.286 lb	8.28 W	Plastic	0.396 in H2O	98.6 Pa	50 dB(A)	Ball	3 Wire Leads	4100 RPM	7 V	13.8 VDC	2.52 mł/min	90 CFM	Locked Rotor Protection Speed Sensor (Tach)	60 °C	60 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	0.69 A	12 VDC
Delta Electronics FFB0912HH	25.4 mm	70000 Hrs	129.73 g	0.286 lb	4.8 W	Plastic	0.242 in H2O	60.3 Pa	44.1 dB(A)	Ball	2 Wire Leads	3200 RPM	7 V	13.8 VDC	1.97 m³/min	70.2 CFM		60 °C	60 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	400 mA	12 VDC
Delta Electronics FFB0912VHE	38 mm	70000 Hrs	198 g	0.437 lb	6 W	Plastic	0.406 in H2O	101.1 Pa	47.5 dB	Ball	2 Wire Leads	3800 RPM	7 V	13.8 VDC	2.39 mł/min	85.5 CFM		70 °C	70 °C	-10 °C	-10 °C	Plastic	Tubeaxial	CE CSA UL VDE	0.5 A	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FFB0912 Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 90.0 CFM (2.52m³/min) 3 Wire Leads
