| 1st Connector Gender | - | Male Pins, Female Sockets |
| 1st Connector Mounting Type | - | Panel Mount, Free Hanging (In-Line) |
| 1st Connector Number of Positions | - | 4 - 8 |
| 1st Connector Number of Positions Loaded | - | All |
| 1st Connector Orientation | - | A |
| 1st Connector Shell Size - Insert | - | M8, M12, M5 |
| 1st Connector Type | - | Receptacle, Plug, Right Angle, Plug, Receptacle, Right Angle |
| 2nd Connector Gender | - | Female Sockets |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | - | 5 - 8 |
| 2nd Connector Number of Positions Loaded | - | All |
| 2nd Connector Shell Size - Insert | - | M12 |
| 2nd Connector Type | - | Wire Leads, Plug, Right Angle, Plug |
| Accessory Type | Terminator | Terminator, Cap (Cover), Protective |
| Applications | - | Industrial |
| Assembly Configuration | - | Standard |
| Backshell Material, Plating | - | Nylon, Polyamide (PA), Glass Filled, Nickel, Zinc Alloy, Thermoplastic Polyurethane (TPU) |
| Cable Material | - | Polyurethane (PUR), Polyvinyl Chloride (PVC) |
| Cable Opening | - | 4.5 - 8 mm |
| Cable Opening | - | 3.5 - 6 mm |
| Cable Opening | - | 0.177 - 0.315 in |
| Cable Opening | - | 0.138 - 0.236 in |
| Cable Opening | - | 0.157 - 0.217 in |
| Cable Opening | - | 4 - 5.5 mm |
| Cable Opening | - | 5 mm |
| Cable Opening | - | 3.5 mm |
| Cable Opening | - | 0.197 in |
| Cable Opening | - | 0.138 in |
| Cable Type | - | Round, Round Cable |
| Color | Black, Blue | Silver, Black, Blue |
| Connector Style | - | Distributor Y-Shaped |
| Connector Type | - | Female Sockets, Plug, Receptacle, Male Pins, Plug to Plug, Jack to Cable |
| Contact Finish | - | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Copper Alloy, Brass |
| Convert From (Adapter End) | - | Jack, 8p8c (RJ45), Female Sockets |
| Convert To (Adapter End) | - | 8p8c (RJ45), Jack, Female Sockets (1), Male Pins (1) |
| Current Rating (Amps) | - | 1 - 4 A |
| Features | Waterproof, Backshell, Dust Tight | Circular Threaded Coupling, Backshell, Waterproof, Dust Tight, Molded Plugs, Coupling Nut, Internal Threads, Contains Strap |
| For Use With/Related Products | M20 Connector | M20 Connector, M12 Female Connector |
| Housing Color | - | Black |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Insert Material | - | Thermoplastic Polyurethane (TPU), Polyamide (PA), Nylon, Glass Filled, Nylon, Polyamide (PA), Polyamide (PA), Nylon |
| Length | - | 1.64 - 9.84 ft |
| Length | - | 1 - 500 mm |
| Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT), Glass Filled, Polyamide (PA), Nylon |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | - | Bulkhead, Panel Mount, Through Hole, Free Hanging (In-Line), Right Angle |
| Number of Positions | - | 4 - 8 |
| Number of Positions (Convert From) | - | 5 |
| Number of Positions (Convert To) | - | 5 |
| Number of Positions (Convert To) | - | 2 |
| Number of Positions/Contacts | - | 8p8c (RJ45, Ethernet) |
| Operating Temperature | - | -40 - -25 °C |
| Operating Temperature | - | 90 - 105 ░C |
| Orientation | - | A |
| Orientation (Convert From) | - | A |
| Orientation (Convert To) | - | A |
| Primary Material | - | Metal |
| Ratings | - | Cat5e |
| Shell Finish | - | Nickel, Anodized |
| Shell Material | - | Brass, Aluminum Alloy |

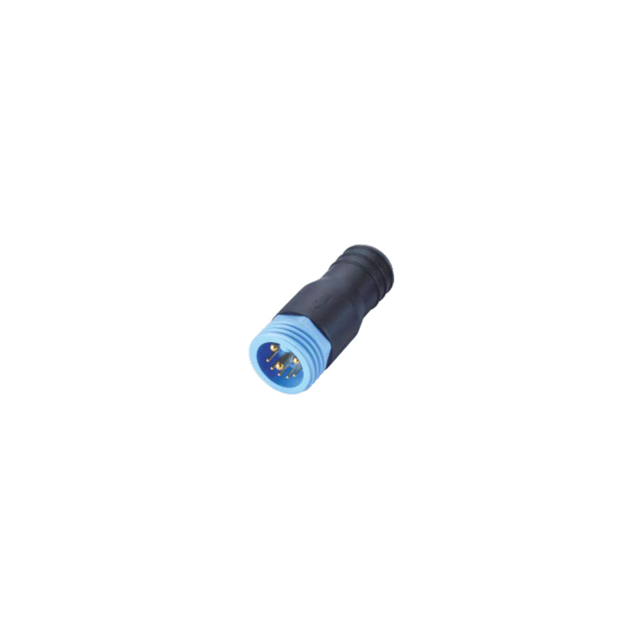

| Shell Size - Insert | M20-8 | M8-6, M12-4, M20-8, M12-5, M8-3, M8-4, M12-8, M12 |
| Shell Size - Insert (Convert From) | - | M12 |
| Shell Size - Insert (Convert To) | - | M12 |
| Shielding | - | Unshielded, Shielded |
| Style | - | Cat5e, Industrial Environments - IP67, Industrial Environments - IP68 |
| Termination | - | Solder, Screw, IDC |
| Type | - | Coupler |
| Usage | - | Industrial Environments |
| Voltage Rating | - | 30 - 250 VAC |
