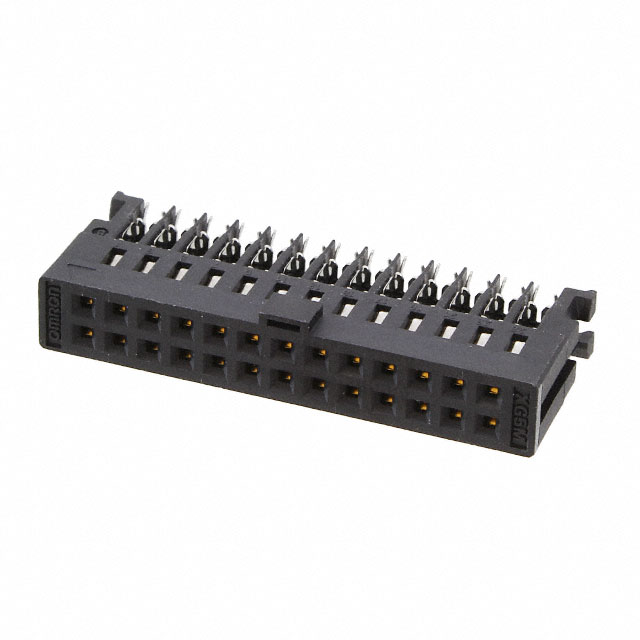

XG5M-2632-N

Active

Omron Electronics Inc-EMC Div

CONN RCPT 26POS IDC 24AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XG5M-2632-N

Active

Omron Electronics Inc-EMC Div

CONN RCPT 26POS IDC 24AWG GOLD

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG5M-2632-N

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	24 AWG
Wire Type	Discrete

XG5M Series

Part	Cable Termination	Wire Gauge	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Wire Type	Pitch [x]	Pitch [x]	Number of Rows	Color	Contact Finish	Contact Type	Number of Positions	Connector Type	Number of Positions	Features
Omron Electronics Inc-EMC Div XG5M-5032-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	50	Receptacle
Omron Electronics Inc-EMC Div XG5M-1635-N	IDC		Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket		Receptacle	16
Omron Electronics Inc-EMC Div XG5M-1034-N	IDC		Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	10	Socket
Omron Electronics Inc-EMC Div XG5M-2632-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	26	Receptacle
Omron Electronics Inc-EMC Div XG5M-6033-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	60	Socket		Polarizing Tab
Omron Electronics Inc-EMC Div XG5M-1032-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	10	Receptacle
Omron Electronics Inc-EMC Div XG5M-4032-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	40	Receptacle
Omron Electronics Inc-EMC Div XG5M-5033-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	50	Socket		Polarizing Tab
Omron Electronics Inc-EMC Div XG5M-3435-N	IDC		Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	34	Socket		Polarizing Tab
Omron Electronics Inc-EMC Div XG5M-6436-N	IDC		Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	64	Socket		Polarizing Tab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.07
		10	$ 4.58
		25	$ 4.33
		80	$ 4.01
		320	$ 3.72
