L17SM209SB64T

Active

Amphenol ICC (Commercial Products)

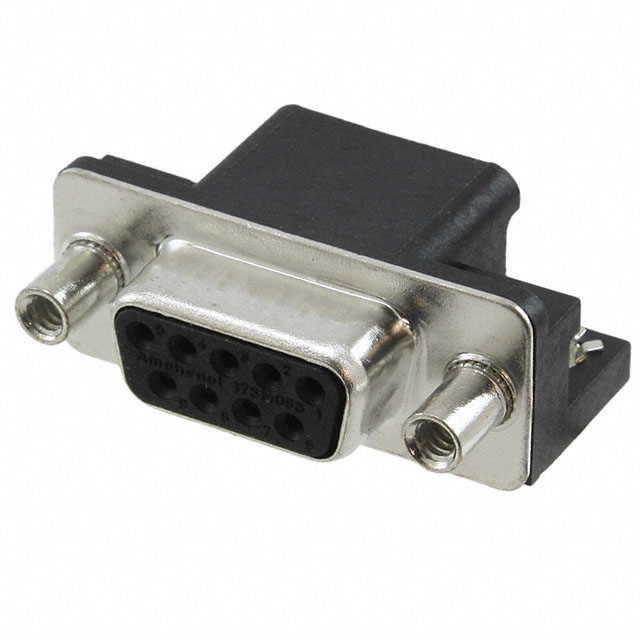

CONN D-SUB RCPT 9P SMD R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

L17SM209SB64T

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9P SMD R/A SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17SM209SB64T

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	31.5 µin
Contact Finish Thickness	0.8 µm
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	85 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	300 VDC

L17SM209 Series

Part	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Form	Flange Feature	Contact Material	Mounting Type	Voltage Rating	Contact Finish	Color	Connector Type	Material Flammability Rating	Current Rating (Amps)	Termination	Number of Positions
Amphenol ICC (Commercial Products) L17SM209S714T	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	31.5 µin	0.8 µm	D-Sub	Stamped	4-40 Board Side	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209SB61T	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	8 çin	0.203 çm	D-Sub	Stamped	Female Screwlock (4-40) Mating Side	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209SB11T	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	8 çin	0.203 çm	D-Sub	Stamped	4-40 Board Side	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209SB51T	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	8 çin	0.203 çm	D-Sub	Stamped	Female Screwlock (4-40) Mating Side	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209SB11R	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	8 çin	0.203 çm	D-Sub	Stamped	4-40 Board Side	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209S114R	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	31.5 µin	0.8 µm	D-Sub	Stamped	4-40 Board Side	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209SB64T	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	31.5 µin	0.8 µm	D-Sub	Stamped	4-40	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209S821R	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	8 çin	0.203 çm	D-Sub	Stamped	Board Side (M3)	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209S764T	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	31.5 µin	0.8 µm	D-Sub	Stamped	Female Screwlock (4-40) Mating Side	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
Amphenol ICC (Commercial Products) L17SM209SB64R	2	DE E	1	85 °C	105 ░C	Signal	Thermoplastic Glass Filled	31.5 µin	0.8 µm	D-Sub	Stamped	Female Screwlock (4-40) Mating Side	Brass	Surface Mount Right Angle	300 VDC	Gold	Black	Receptacle Female Sockets	UL94 V-0	3 A	Solder	9
