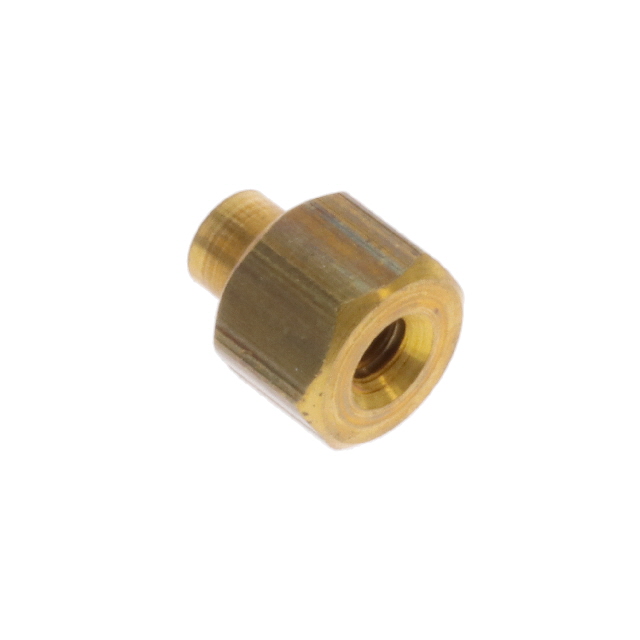

3851-B-440-B
ActiveRAF Electronic Hardware
1/4_HEX_SWAGE_STANDOFFS_0_136_DI
Deep-Dive with AI
Search across all available documentation for this part.
3851-B-440-B
ActiveRAF Electronic Hardware
1/4_HEX_SWAGE_STANDOFFS_0_136_DI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3851-B-440-B |
|---|---|
| Between Board Height | 0.188 " |
| Between Board Height | 4.78 mm |
| Between Board Height | 0.1875 " |
| Diameter - Outside | 6.35 mm |
| Diameter - Outside | 0.25 in |
| Diameter - Outside [custom] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.293 in |
| Length - Overall [x] | 7.43 mm |
| Material | Brass |
| Screw, Thread Size | #4-40 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.14 | |
| 5 | $ 2.03 | |||
| 10 | $ 1.98 | |||
| 25 | $ 1.92 | |||
| 50 | $ 1.87 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.60 | |||
Description
General part information
3851-B Series
Hex Standoff Threaded #4-40 Brass 0.188" (4.78mm) 3/16"
Documents
Technical documentation and resources
No documents available
