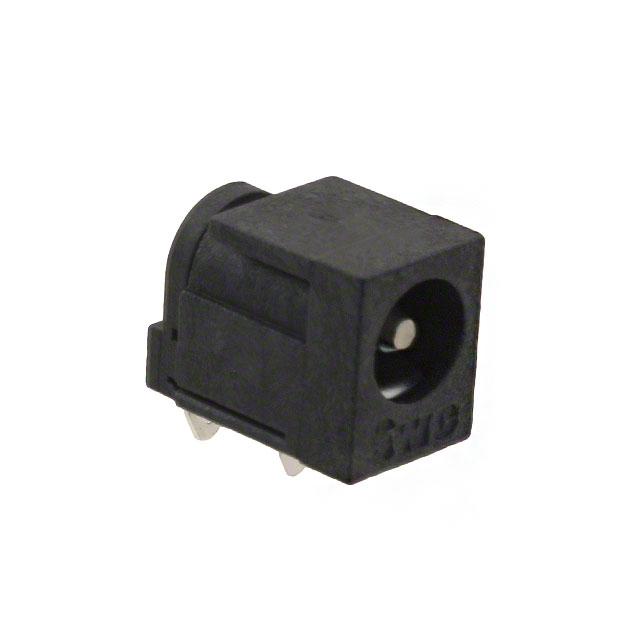

RAPC712X
ActiveSwitchcraft Inc.
CONN DC POWER PL 2 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAPC712X
ActiveSwitchcraft Inc.
CONN DC POWER PL 2 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RAPC712X | RAPC71 Series |
|---|---|---|
| Actual Diameter [diameter] | 2.5 mm, 6.3 mm | 2.5 - 6.3 mm |
| Actual Diameter [diameter] | 0.098 in, 0.248 in | 0.098 - 0.248 in |
| Body Color | Black | Black |
| Body Material | - | Copper Alloy |
| Connector Type | Jack | Jack |
| Contact Material | Brass | Brass, Copper Alloy |
| Contact Material - Plating | - | Tin |
| Contact Material - Plating [custom] | Silver | Silver |
| Current Rating (Amps) | 5 A | 5 A |
| Gender | Male | Male |
| Housing Material | Thermoplastic | Thermoplastic |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm | 2.5 - 5.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " | 0.098 - 0.217 " |
| Insulation Color | - | Black |
| Internal Switch(s) | Single Switch, Normally Closed | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors | 2 - 3 Conductors |
| Number of Positions/Contacts | - | 2 |
| Number of Positions/Contacts | - | 2 |
| Operating Temperature | - | 65 °C |
| Operating Temperature | - | -30 ░C |
| Shielding | Unshielded | Unshielded |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
| Voltage - Rated | - | 24 VDC |
RAPC71 Series
CONN DC POWER PL 2 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BULK
| Part | Connector Type | Termination | Current Rating (Amps) | Internal Switch(s) | Gender | Body Color | Contact Material | Shielding | Number of Positions/Contacts | Housing Material | Contact Material - Plating [custom] | Actual Diameter [diameter] | Actual Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Mounting Type | Voltage - Rated | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Contact Material - Plating | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. RAPC712X | Jack | Solder Eyelet(s) | 5 A | Normally Closed, Single Switch | Male | Black | Brass | Unshielded | 2 Conductors, 3 Conductors | Thermoplastic | Silver | 2.5 mm, 6.3 mm | 0.098 in, 0.248 in | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Through Hole, Right Angle | ||||||||
Switchcraft Inc. RAPC712BKZ | Jack | Solder Eyelet(s) | 5 A | Normally Closed, Single Switch | Male | Black | Copper Alloy | Unshielded | 2 Conductors, 3 Conductors | Thermoplastic | Silver | 2.5 mm, 6.3 mm | 0.098 in, 0.248 in | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Through Hole, Right Angle | 24 VDC | Black | 65 °C | -30 ░C | Copper Alloy | |||
Switchcraft Inc. RAPC712BK | Jack | Solder Eyelet(s) | 5 A | Normally Closed, Single Switch | Male | Black | Copper Alloy | Unshielded | Thermoplastic | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Through Hole, Right Angle | Tin | 2 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RAPC71 Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
