345-036-524-802
ActiveEDAC Inc.

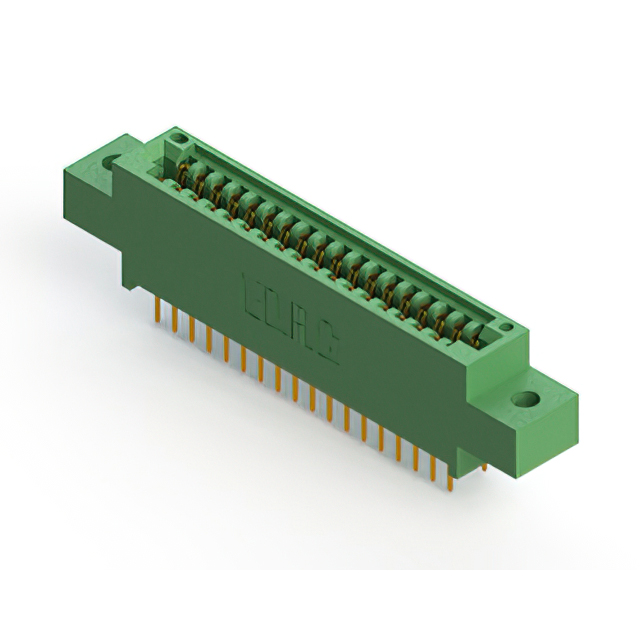

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-036-524-802
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-036-524-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-036 Series
...
| Part | Material - Insulation | Termination | Contact Finish Thickness | Contact Finish Thickness | Gender | Read Out | Flange Feature | Contact Material | Color | Card Type | Features | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions | Contact Finish | Mounting Type | Number of Rows | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | Female | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Green | Non Specified - Dual Edge | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 2 | 18 | 36 | Gold | Through Hole | 2 | Cantilever | ||||
EDAC Inc. | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | Female | Single | Top Mount Opening Unthreaded | Copper Alloy | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | 36 | 36 | Gold | Through Hole | 1 | Cantilever | 0.156 in | 3.96 mm | |||
EDAC Inc. | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | Female | Dual | Flush Mount Top Opening Unthreaded | Copper Alloy | Green | Non Specified - Dual Edge | Card Extender | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 2 | 18 | 36 | Gold | Board Edge Straddle Mount | 2 | Cantilever | 0.156 in | 3.96 mm | ||
EDAC Inc. | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | Female | Dual | Copper Alloy | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 2 | 18 | 36 | Gold | Through Hole | 2 | Cantilever | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Polyester Thermoplastic | Wire Wrap | 10 Áin | 0.25 Ám | Female | Dual | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Green | Non Specified - Dual Edge | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 2 | 18 | 36 | Gold | Through Hole | 2 | Cantilever | ||||
EDAC Inc. | Polyester Thermoplastic | Wire Wrap | 10 Áin | 0.25 Ám | Female | Single | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | 36 | 36 | Gold | Through Hole Right Angle | 1 | Cantilever | |||||
EDAC Inc. | Polyester Thermoplastic | Wire Wrap | 10 Áin | 0.25 Ám | Female | Single | Flush Mount Top Opening Unthreaded | Copper Alloy | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | 36 | 36 | Gold | Through Hole | 1 | Cantilever | 0.156 in | 3.96 mm | |||
EDAC Inc. | Polyester Thermoplastic | Wire Wrap | 10 Áin | 0.25 Ám | Female | Dual | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Green | Non Specified - Dual Edge | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 2 | 18 | 36 | Gold | Through Hole | 2 | Cantilever | ||||
EDAC Inc. | Polyester Thermoplastic | Wire Wrap | 10 Áin | 0.25 Ám | Female | Dual | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 2 | 18 | 36 | Gold | Through Hole Right Angle | 2 | Cantilever | |||||
EDAC Inc. | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | Female | Single | Floating Bobbin Top Mount Opening | Copper Alloy | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | 36 | 36 | Gold | Through Hole Right Angle | 1 | Cantilever | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-036 Series
36 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
