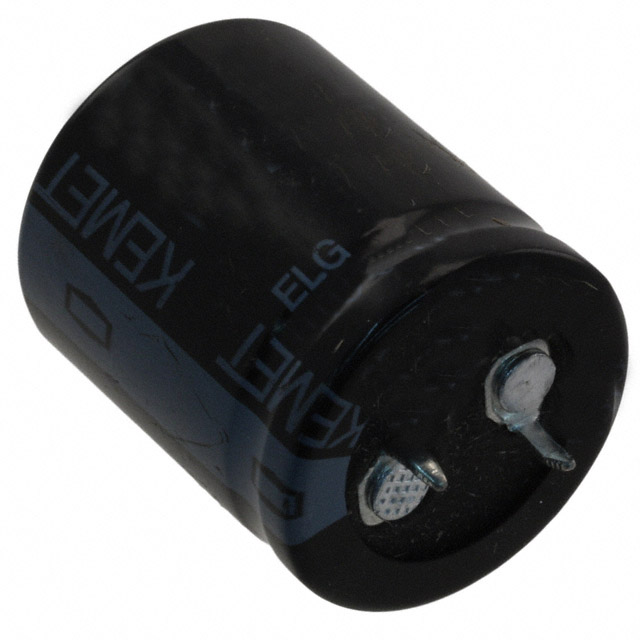

ELG228M063AR2AJ

Active

KEMET

CAP ALUMINUM LYTIC 2200UF 63V 20% (25 X 30MM) SNAP-IN 10MM 0.151 OHM 1.75A 2000H 105°C

Search across all available documentation for this part.

Active

KEMET

CAP ALUMINUM LYTIC 2200UF 63V 20% (25 X 30MM) SNAP-IN 10MM 0.151 OHM 1.75A 2000H 105°C

Technical Specifications

Parameters and characteristics for this part

Specification	ELG228M063AR2AJ

Applications	General Purpose
Capacitance	2200 µF
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	2.03 A
Ripple Current @ Low Frequency	1.75 A
Size / Dimension [diameter]	25 mm
Size / Dimension [diameter]	0.984 "
Tolerance	20 %
Voltage - Rated	63 V

Part	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Ripple Current @ High Frequency	Applications	Package / Case	Ripple Current @ Low Frequency	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Polarization	Tolerance	Voltage - Rated
KEMET ELG228M063AR2AJ	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	2.03 A	General Purpose	Radial Can - Snap-In	1.75 A	2200 µF	25 mm	0.984 "	Through Hole	Polar	20 %	63 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2200 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
