61-8775.11

Active

EAO

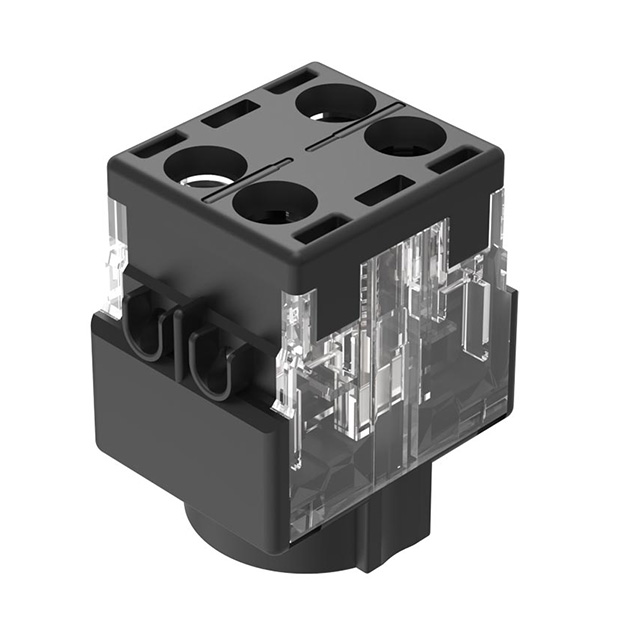

CONTACT BLOCK DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

CONTACT BLOCK DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	61-8775.11	61-8775 Series

(Select First, Then Apply Filters) Compatible Series	EAO, 61	EAO, 61
Circuit	DPST-NO/NC	DPST-NO/NC
Contact Rating @ Voltage	250 VAC, 5 A	0.3 - 250 A
Requires	Switch Body	Switch Body
Termination Style	Screw Terminal	Quick Connect, Solder, Screw Terminal
Termination Style	-	0.11 in
Termination Style	-	2.8 mm

CONTACT BLOCK, 100 MA, 42 V, 2 POLE, QUICK CONNECT, SPDT-1NO/1NC

Part	Contact Rating @ Voltage	Termination Style	Termination Style	Termination Style	Requires	(Select First, Then Apply Filters) Compatible Series	Circuit
EAO 61-8775.37	0.3 A, 50 VAC/DC	0.11 in	Quick Connect, Solder	2.8 mm	Switch Body	61, EAO	DPST-NO/NC
EAO 61-8775.11	5 A, 250 VAC		Screw Terminal		Switch Body	61, EAO	DPST-NO/NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NO/NC 5A @ 250VAC/DC
