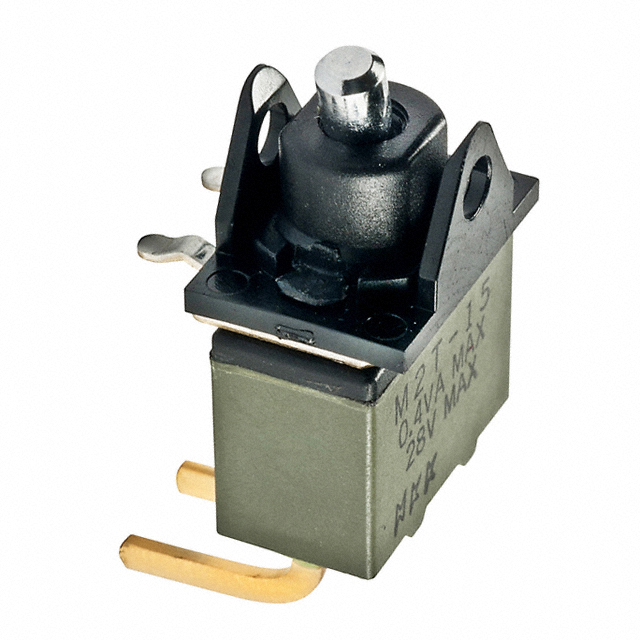

M2T15TXG30
ObsoleteNKK Switches
SWITCH ROCKER SPDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2T15TXG30 |
|---|---|
| Actuator Marking | Varies by Cap |
| Actuator Type | Actuator Arm, Cap Required |
| Approval Agency | CSA, UL |
| Circuit | SPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Process Sealed |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.50 | |
| 10 | $ 6.75 | |||
| 25 | $ 6.41 | |||
| 50 | $ 6.14 | |||
Description
General part information
M2T15TX Series
Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle
