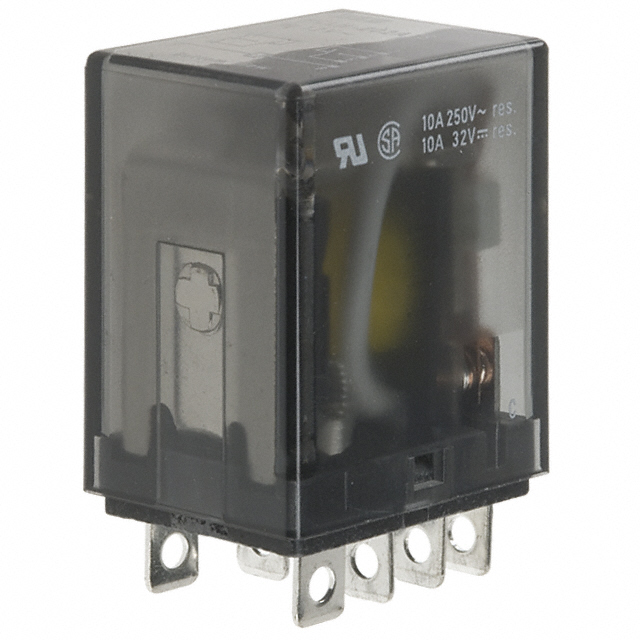

PCLH-208A1SP,000

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 15A 220V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 15A 220V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Coil Current	Mounting Type	Relay Type	Coil Insulation	Contact Material	Load - Max Switching [Max]	Release Time	Approval Agency	Termination Style	Coil Resistance	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Coil Type	Must Operate Voltage	Coil Voltage	Switching Voltage [Max]	Must Release Voltage
TE Connectivity Potter & Brumfield Relays PCLH-208A1SP,000	DPDT (2 Form C)	16.2 mA	Through Hole	General Purpose	Class F	Silver Cadmium Oxide (AgCdO)	1800 VA	20 ms	CSA UR	PC Pin	13.6 kOhms	20 ms	-40 °C	55 °C	15 A	Non Latching	176 VAC	220 VAC/DC	120 VAC	66 VAC
TE Connectivity Potter & Brumfield Relays PCLH-208A1S,000	DPDT (2 Form C)	16.2 mA	Socketable	General Purpose	Class F	Silver Cadmium Oxide (AgCdO)	1800 VA	20 ms	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)	13.6 kOhms	20 ms	-40 °C	55 °C	15 A	Non Latching	176 VAC	220 VAC/DC	120 VAC	66 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 220VAC Coil Through Hole
