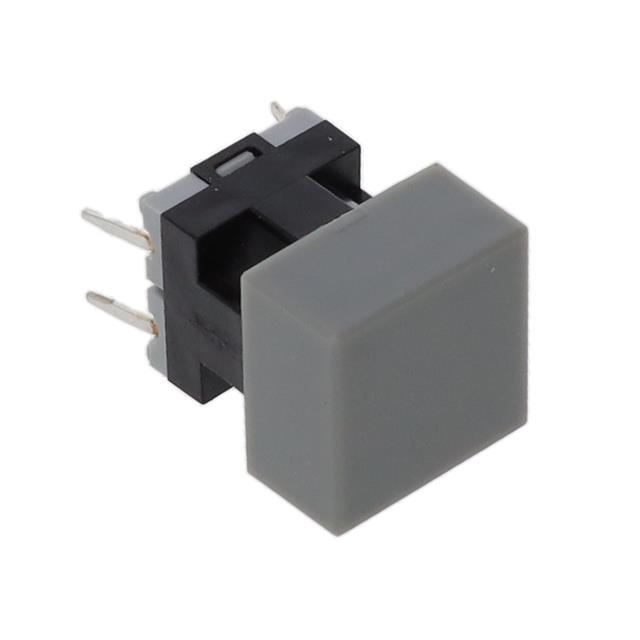

JB15HANP2/H7E-2H

Active

NKK Switches

LOW PROFILE PROCESS SEALED TACTILE

Search across all available documentation for this part.

Active

NKK Switches

LOW PROFILE PROCESS SEALED TACTILE

Technical Specifications

Parameters and characteristics for this part

Specification	JB15HANP2/H7E-2H

Actuator Height off PCB, Vertical	14.7 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.125 A, 24 VDC
Features	Process Sealed
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	265 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Mechanical Life	Circuit	Actuator Orientation	Termination Style	Ingress Protection	Outline [y]	Outline [x]	Actuator Type	Actuator Material	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Switch Function	Illumination	Actuator Height off PCB, Vertical	Switch Travel [custom]	Features	Mounting Type
NKK Switches JB15HANP2/H7E-2H	1000000 Cycles	SPST-NO	Top Actuated	PC Pin	IP67 - Dust Tight Waterproof	10 mm	10 mm	Square Button	Polybutylene Terephthalate (PBT) Glass Filled	0.125 A 24 VDC	70 °C	-25 °C	265 gf	Off-Mom	Non-Illuminated	14.7 mm	0.3 mm	Process Sealed	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
