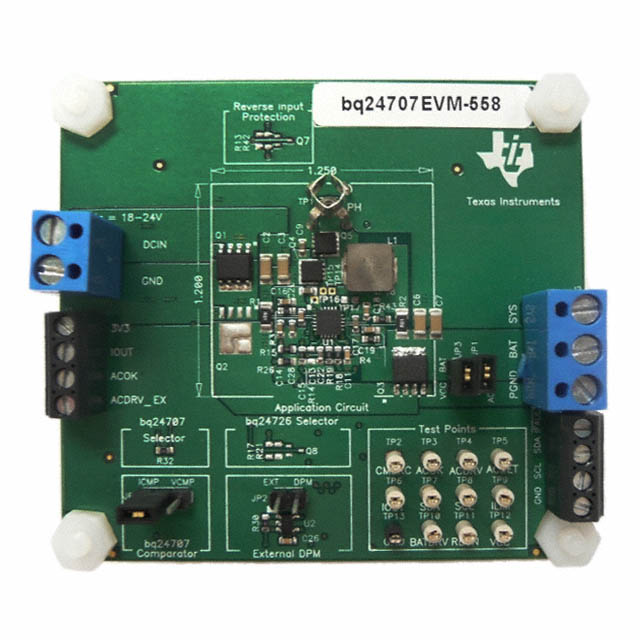

BQ24707EVM-558
ActiveEVAL MODULE FOR BQ24707-558
Deep-Dive with AI
Search across all available documentation for this part.
BQ24707EVM-558
ActiveEVAL MODULE FOR BQ24707-558
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24707EVM-558 | BQ24707 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Battery Pack Voltage | - | 19.2 V |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Current, Over Voltage, Short Circuit |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 4 |
| Number of Cells | - | 1 |
| Operating Temperature | - | 0 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 20-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion, Li-Pol | Li-Ion, Li-Pol |
| Primary Attributes [Max] | 4 Cells | 4 Cells |
| Primary Attributes [Min] | 1 Cells | 1 Cells |
| Supplied Contents | Board(s) | Board(s) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24707 | BQ24707 |
| Voltage - Supply (Max) | - | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ24707 Series
1-4 cell Li-ion battery charge controller with independent comparator and advanced circuit prot.
| Part | Embedded | Function | Supplied Contents | Utilized IC / Part | Primary Attributes | Primary Attributes [Min] | Primary Attributes [Max] | Type | Fault Protection | Current - Charging | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Interface | Mounting Type | Battery Chemistry | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Max) [Max] | Package / Case | Battery Pack Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24707EVM-558 | Battery Charger | Board(s) | BQ24707 | Li-Ion, Li-Pol | 1 Cells | 4 Cells | Power Management | |||||||||||||
Texas Instruments BQ24707ARGRR | Over Current, Over Voltage, Short Circuit | Constant - Programmable | 4 | 1 | I2C | Surface Mount | Lithium Ion | 0 °C | 125 ¯C | 24 V | 20-VFQFN Exposed Pad | 19.2 V | ||||||||
Texas Instruments BQ24707RGRT | Over Current, Over Voltage, Short Circuit | Constant - Programmable | 4 | 1 | I2C | Surface Mount | Lithium Ion | 0 °C | 125 ¯C | 24 V | 20-VFQFN Exposed Pad | 19.2 V | ||||||||
Texas Instruments BQ24707RGRR | Over Current, Over Voltage, Short Circuit | Constant - Programmable | 4 | 1 | I2C | Surface Mount | Lithium Ion | 0 °C | 125 ¯C | 24 V | 20-VFQFN Exposed Pad | 19.2 V | ||||||||
Texas Instruments BQ24707ARGRT | Over Current, Over Voltage, Short Circuit | Constant - Programmable | 4 | 1 | I2C | Surface Mount | Lithium Ion | 0 °C | 125 ¯C | 24 V | 20-VFQFN Exposed Pad | 19.2 V |
Description
General part information
BQ24707 Series
The bq24707 and bq24707A devices are high-efficiency, synchronous battery chargers, offering low component count for space-constrained, multi-chemistry battery charging applications.
SMBus controlled input current, charge current, and charge voltage DACs allow for very high regulation accuracies that can be easily programmed by the system power management micro-controller.
The IC uses the internal input current register or external ILIM pin to throttle down PWM modulation to reduce the charge current.
