AOZ1320DI-03

Obsolete

Alpha & Omega Semiconductor Inc.

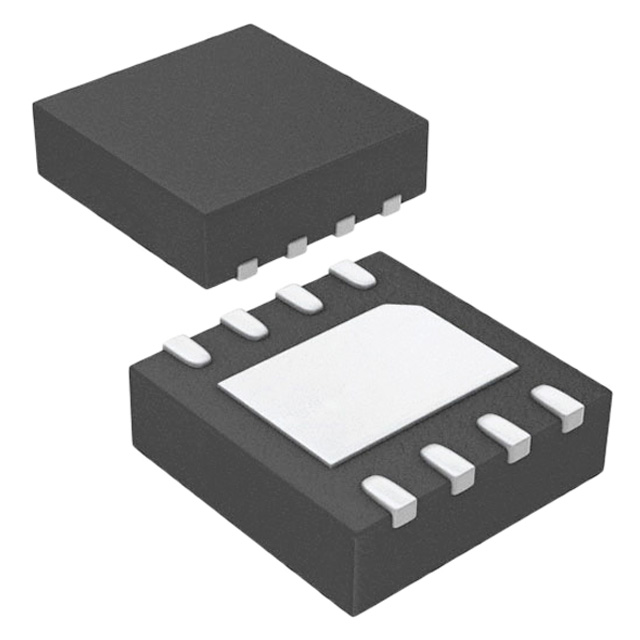

IC PWR SWITCH P-CHAN 1:1 8DFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

IC PWR SWITCH P-CHAN 1:1 8DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ1320DI-03

Current - Output (Max) [Max]	2.3 A
Fault Protection	UVLO
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel
Package / Case	8-WFDFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	75 mOhm
Supplier Device Package	8-DFN-EP (2x2)
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1.8 V
Voltage - Supply (Vcc/Vdd)	False

Part	Interface	Package / Case	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Rds On (Typ)	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Supply (Vcc/Vdd)	Fault Protection	Output Configuration	Features	Input Type	Switch Type	Number of Outputs	Voltage - Load [Min]	Voltage - Load [Max]
Alpha & Omega Semiconductor Inc. AOZ1320DI-01	On/Off	8-WFDFN Exposed Pad	1:1	2.3 A	75 mOhm	Surface Mount	8-DFN-EP (2x2)	150 °C	-40 °C	P-Channel		UVLO	High Side	Load Discharge Slew Rate Controlled	Non-Inverting	General Purpose	1	1.8 V	5.5 V
Alpha & Omega Semiconductor Inc. AOZ1320DI-03	On/Off	8-WFDFN Exposed Pad	1:1	2.3 A	75 mOhm	Surface Mount	8-DFN-EP (2x2)	150 °C	-40 °C	P-Channel		UVLO	High Side	Load Discharge Slew Rate Controlled	Non-Inverting	General Purpose	1	1.8 V	5.5 V
