820K003-203R001

Active

MH Connectors

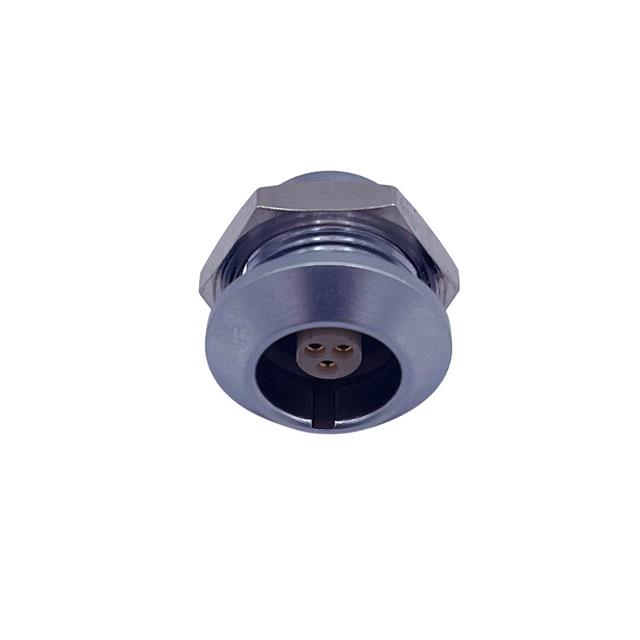

CIRCULAR CONNECTOR, QUIK-LOQ 820K SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +2

820K003-203R001

Active

MH Connectors

CIRCULAR CONNECTOR, QUIK-LOQ 820K SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	820K003-203R001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Finish Thickness - Mating	0.178 µm
Contact Material	Copper Alloy
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Voltage Rating	400 V

820K Series

Part	Shell Material	Connector Type	Color	Contact Material	Mounting Type	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Applications	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Features	Shielding	Fastening Type	Contact Finish - Mating	Primary Material	Number of Positions	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Shell Finish	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Mounting Feature	Termination	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
MH Connectors 820K006-173L401	Brass	Male Pins Plug	Black Silver	Copper Alloy	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Brass Chrome	200 °C	-40 °C	280 V	Backshell Strain Relief	Shielded	Push-Pull	Gold	Metal	6	Keyed	3.3 mm 4.2 mm	0.13 in 0.165 in	Nickel	2.5 A
MH Connectors 820K009-273L301	Brass	Receptacle Female Sockets	Black Silver	Copper Alloy	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Brass Chrome	200 °C	-40 °C	200 V	Backshell Strain Relief	Shielded	Push-Pull	Gold	Metal	9	Keyed			Nickel	2 A	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 820KR04-213R001	Brass	Receptacle Female Sockets	Silver	Copper Alloy	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement		200 °C	-40 °C	280 V		Shielded	Push-Pull	Gold	Metal	4	Keyed			Nickel	7 A					Bulkhead - Front Side Nut	Solder
MH Connectors 820K006-173L501	Brass	Male Pins Plug	Black Silver	Copper Alloy	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Brass Chrome	200 °C	-40 °C	280 V	Backshell Strain Relief	Shielded	Push-Pull	Gold	Metal	6	Keyed			Nickel	2.5 A							5.2 mm	0.205 in	0.169 in	4.3 mm
MH Connectors 820K005-213R001	Brass	Receptacle Female Sockets	Silver	Copper Alloy	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement		200 °C	-40 °C	280 V		Shielded	Push-Pull	Gold	Metal		Keyed			Nickel	6.5 A					Bulkhead - Front Side Nut	Solder
MH Connectors 820KR02-213R001	Brass	Receptacle Female Sockets	Silver	Copper Alloy	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement		200 °C	-40 °C	430 V		Shielded	Push-Pull	Gold	Metal	2	Keyed			Nickel	10 A					Bulkhead - Front Side Nut	Solder
MH Connectors 820K002-173L501	Brass	Male Pins Plug	Black Silver	Copper Alloy	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Brass Chrome	200 °C	-40 °C	430 V	Backshell Strain Relief	Shielded	Push-Pull	Gold	Metal	2	Keyed			Nickel	10 A							5.2 mm	0.205 in	0.169 in	4.3 mm
MH Connectors 820K003-203R001	Brass	Receptacle Female Sockets	Silver	Copper Alloy		IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement		200 °C	-40 °C	400 V		Shielded	Push-Pull	Gold	Metal		Keyed			Nickel	8 A					Bulkhead - Rear Side Nut
MH Connectors 820K006-273L501	Brass	Receptacle Female Sockets	Black Silver	Copper Alloy	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Brass Chrome	200 °C	-40 °C	280 V	Backshell Strain Relief	Shielded	Push-Pull	Gold	Metal	6	Keyed			Nickel	2.5 A							5.2 mm	0.205 in	0.169 in	4.3 mm
MH Connectors 820K007-173L401	Brass	Male Pins Plug	Black Silver	Copper Alloy	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	7 µin	0.178 µm	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Brass Chrome	200 °C	-40 °C	260 V	Backshell Strain Relief	Shielded	Push-Pull	Gold	Metal	7	Keyed	3.3 mm 4.2 mm	0.13 in 0.165 in	Nickel	2.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 26.90
Newark	Each	10	$ 26.75
		100	$ 23.15
		500	$ 21.27
		1000	$ 20.81

Description

General part information

820K Series

The 820K003-203R001 from Norcomp is an 820K series IP67/68 rated-9mm push pull female connector with 3 poles. The precision designed metal shell push-pull connector is engineered to withstand shock and high vibration both indoors and outdoors in harsh environments. The small rugged, sealed push pull connector is ideal for applications where quick connect / disconnect and environmental protection are required. This new versatile connector is fully intermateable with existing push pull industry solutions.
