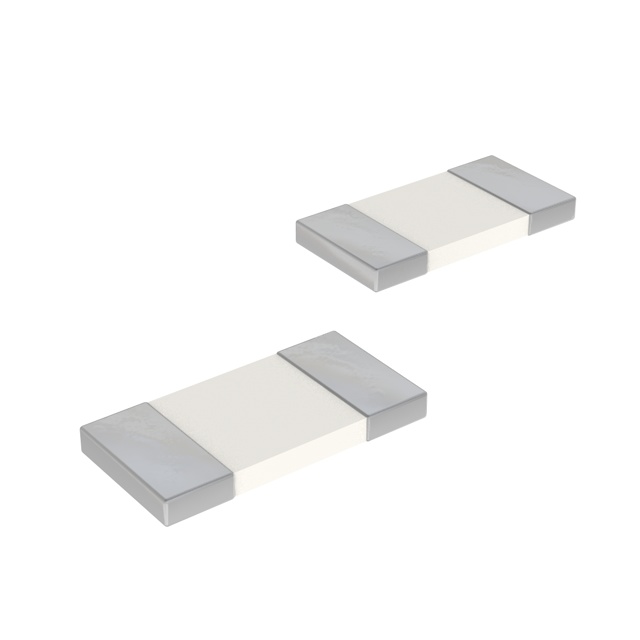

CE201210-1N8D

Active

Bourns Inc.

FIXED IND 1.8NH 300MA 100MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CE201210-1N8D

Active

Bourns Inc.

FIXED IND 1.8NH 300MA 100MOHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CE201210-1N8D

Current Rating (Amps)	300 mA
DC Resistance (DCR)	100 mOhm
Frequency - Self Resonant	4 GHz
Height - Seated (Max) [Max]	0.041 in
Height - Seated (Max) [Max]	1.03 mm
Inductance	1.8 nH
Inductance Frequency - Test	100 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Q @ Freq	100 MHz, 18
Shielding	Unshielded
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805 (2012 Metric)
Tolerance	0.3 nH
Type	Multilayer

CE201210 Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Current Rating (Amps)	Shielding	Type	Mounting Type	Inductance	Material - Core	Frequency - Self Resonant	Tolerance	Supplier Device Package	DC Resistance (DCR) [Max]	Q @ Freq	DC Resistance (DCR)
Bourns Inc. CE201210-33NJ	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	33 nH	Ceramic	1.2 GHz	5 %	0805 (2012 Metric)
Bourns Inc. CE201210-8N2J	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	8.2 nH	Ceramic	2.4 GHz	5 %	0805 (2012 Metric)	280 mOhm	21 100 MHz
Bourns Inc. CE201210-3N3J	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	3.3 nH	Ceramic	4 GHz	5 %	0805 (2012 Metric)	130 mOhm	16 100 MHz
Bourns Inc. CE201210-2N2D	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount		Ceramic	4 GHz	0.3 nH	0805 (2012 Metric)		18 100 MHz	100 mOhm
Bourns Inc. CE201210-56NJ	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	56 nH	Ceramic	800 MHz	5 %	0805 (2012 Metric)	750 mOhm	23 100 MHz
Bourns Inc. CE201210-R47J	0.041 in	1.03 mm	-55 °C	125 °C	50 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	470 nH	Ceramic	200 MHz	5 %	0805 (2012 Metric)	1.5 Ohm	17 100 MHz
Bourns Inc. CE201210-1N8D	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	1.8 nH	Ceramic	4 GHz	0.3 nH	0805 (2012 Metric)		18 100 MHz	100 mOhm
Bourns Inc. CE201210-3N3D	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	3.3 nH	Ceramic	4 GHz	0.3 nH	0805 (2012 Metric)	130 mOhm	16 100 MHz
Bourns Inc. CE201210-3N9J	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	3.9 nH	Ceramic	4 GHz	5 %	0805 (2012 Metric)	150 mOhm	18 100 MHz
Bourns Inc. CE201210-6N8J	0.041 in	1.03 mm	-55 °C	125 °C	100 MHz	2 mm	0.079 in	0.049 in	1.25 mm	0805	300 mA	Unshielded	Multilayer	Surface Mount	6.8 nH	Ceramic	2.8 GHz	5 %	0805 (2012 Metric)	250 mOhm	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	20000	$ 0.04

Description

General part information

CE201210 Series

1.8 nH Unshielded Multilayer Inductor 300 mA 100mOhm Max 0805 (2012 Metric)
