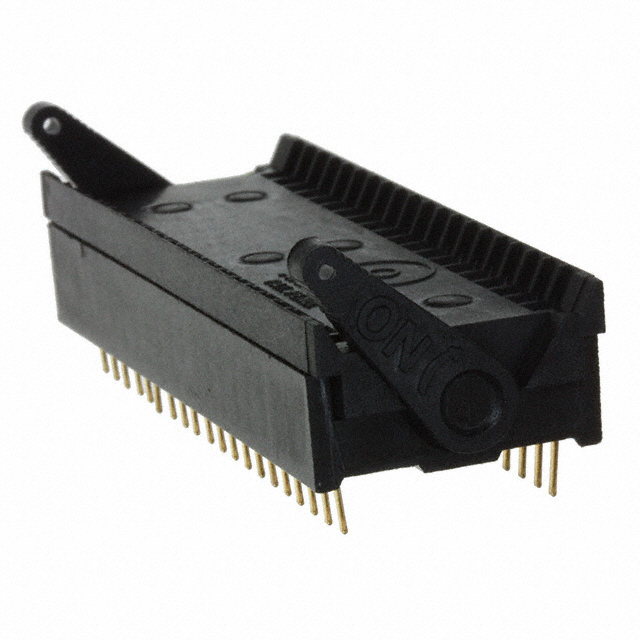

40-516-11
ActiveAries Electronics
CONN IC DIP SOCKET ZIF 40POS GLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
40-516-11
ActiveAries Electronics
CONN IC DIP SOCKET ZIF 40POS GLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 40-516-11 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Glass Filled, Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 40 |
| Number of Positions or Pins (Grid) [custom] | 20 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.15 in |
| Termination Post Length | 3.81 mm |
| Type | ZIF (ZIP), DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.45 | |
| 10 | $ 17.72 | |||
| 30 | $ 16.80 | |||
| 50 | $ 16.55 | |||
| 100 | $ 14.60 | |||
| 250 | $ 13.63 | |||
| 500 | $ 13.34 | |||
Description
General part information
40-516 Series
40 (2 x 20) Pos DIP, ZIF (ZIP) Socket Gold Through Hole
