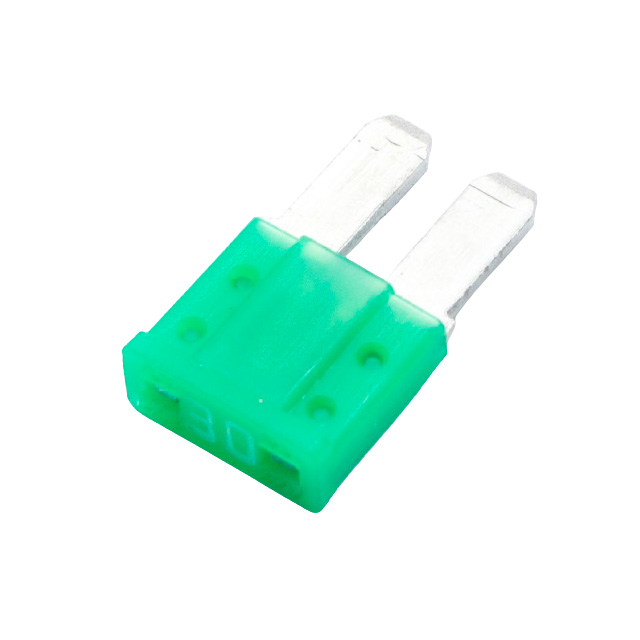

ANT-UL-30A

Active

OptiFuse

FUSE AUTO 30A 32VDC BLADE MICRO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 30A 32VDC BLADE MICRO

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-UL-30A

Approval Agency	ISO, UL 248, SAE, cURus
Breaking Capacity @ Rated Voltage	1 kA
Color	Green
Current Rating (Amps)	30 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.354 "
Size / Dimension [x]	9 mm
Size / Dimension [y]	3.8 mm
Size / Dimension [y]	0.15 "
Size / Dimension [z]	0.315 "
Size / Dimension [z]	8 mm
Voltage Rating - DC	32 V

FUSE AUTO 30A 32VDC BLADE MICRO

Part	Package / Case	Mounting Type	Breaking Capacity @ Rated Voltage	Approval Agency	Fuse Type	Current Rating (Amps)	Color	Response Time	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC
OptiFuse ANT-UL-30A	Blade, Micro	Requires Holder	1 kA	cURus, ISO, SAE, UL 248	Automotive	30 A	Green	Fast Blow	0.315 "	0.354 "	3.8 mm	8 mm	0.15 "	9 mm	32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
