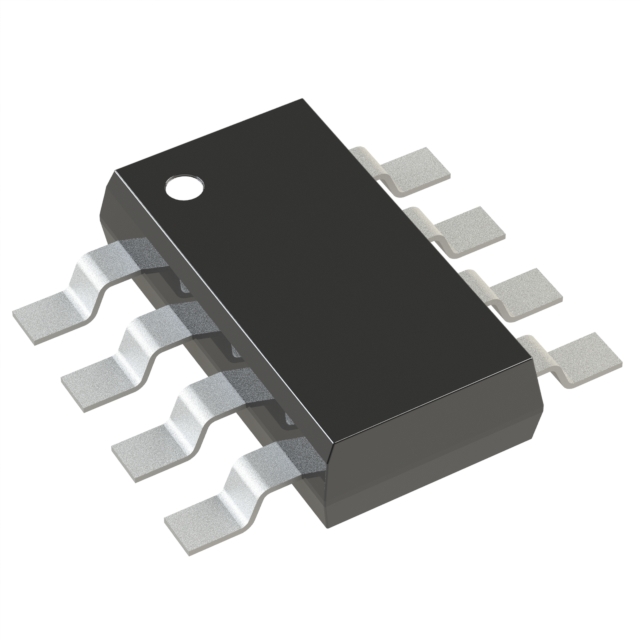

ZDT6718QTA

Active

Diodes Inc

PWR LOW SAT TRANSISTOR SM-8 T&R

Search across all available documentation for this part.

Active

Diodes Inc

PWR LOW SAT TRANSISTOR SM-8 T&R

Technical Specifications

Parameters and characteristics for this part

Specification	ZDT6718QTA

Current - Collector (Ic) (Max)	1.5 A, 2 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	300, 300
Frequency - Transition	180 MHz, 140 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-223-8
Power - Max [Max]	2 W
Supplier Device Package	SM-8
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	220 mV, 200 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	20 V

Complementary, 20V, 2A, SM-8

Part	Supplier Device Package	Current - Collector (Ic) (Max)	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Transistor Type	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce	Mounting Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Diodes Inc ZDT6718QTA	SM-8	1.5 A 2 A	200 mV 220 mV	140 MHz 180 MHz	1 NPN 1 PNP	SOT-223-8	300 300	Surface Mount	2 W	100 nA	20 V	-55 °C	150 °C
