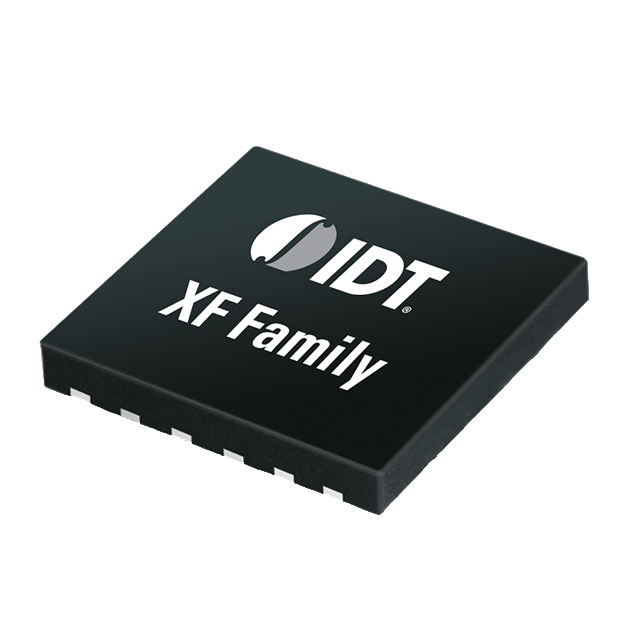

XFC236156.250000I

Active

Renesas Electronics Corporation

DFN-12(2X2.5) DIGITALLY CONTROLLED OSCILLATORS(DCOS) ROHS

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

DFN-12(2X2.5) DIGITALLY CONTROLLED OSCILLATORS(DCOS) ROHS

Technical Specifications

Parameters and characteristics for this part

DFN-12(2X2.5) DIGITALLY CONTROLLED OSCILLATORS(DCOS) ROHS

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Type	Voltage - Supply	Base Resonator	Frequency Stability	Frequency	Function	Output
Renesas Electronics Corporation XFC236156.250000I	0.098 "	2 mm	2.5 mm	0.079 in	85 °C	-40 °C	Surface Mount	12-SMD, No Lead, Exposed Pad	XO (Standard)	3.3 V	Crystal	25 ppm	156.25 MHz	Enable/Disable	CML

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

156.25 MHz XO (Standard) CML Oscillator 3.3V Enable/Disable 12-SMD, No Lead, Exposed Pad
