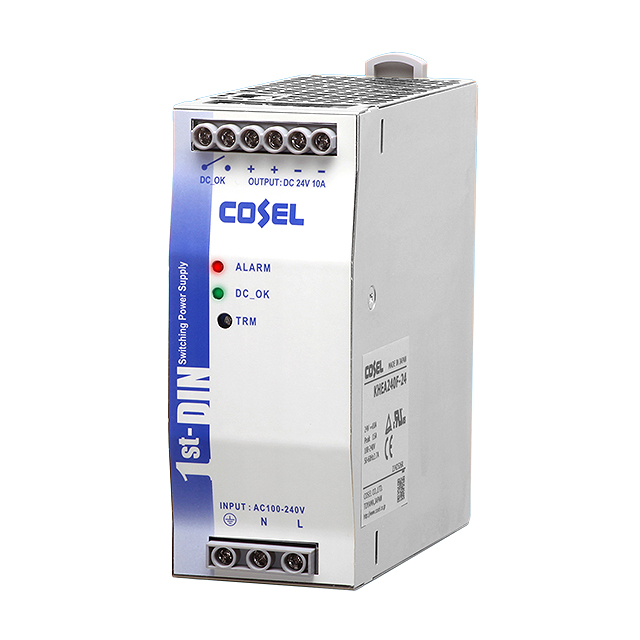

KHEA240F-24

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	KHEA240F-24

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output (Max) [Max]	10 A
Efficiency	94 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	240 W
Size / Dimension [x]	121.2 mm
Size / Dimension [x]	4.77 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Power (Watts)	Applications	Current - Output (Max) [Max]	Efficiency	Number of Outputs	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency	Voltage - Output 1	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]
Cosel USA, Inc. KHEA240F-24	240 W	ITE (Commercial)	10 A	94 %	1	3000 V	121.2 mm	4.77 in	4.88 "	124 mm	1.97 "	50 mm	-20 °C	70 °C	Adjustable Output PFC Remote Sense Universal Input	CE cURus TUV	24 V	AC	85 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 240W
