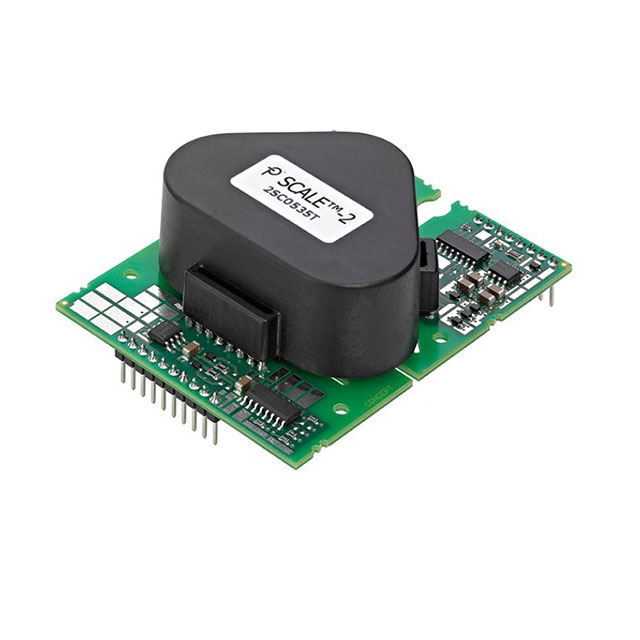

2SC0535T2G0-33

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Search across all available documentation for this part.

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2SC0535T2G0-33	2SC0535 Series

Channel Type	Independent	Independent
Current - Peak Output (Source, Sink) [custom]	35 A	35 A
Current - Peak Output (Source, Sink) [custom]	35 A	35 A
Driven Configuration	High-Side, Low-Side	High-Side, Low-Side
Gate Type	IGBT	IGBT
High Side Voltage - Max (Bootstrap) [Max]	3300 V	3300 V
Mounting Type	Surface Mount	Surface Mount
Number of Drivers	2	2
Operating Temperature [Max]	85 C	85 °C
Operating Temperature [Min]	-55 C	-55 - -40 °C
Package / Case	Module	Module
Rise / Fall Time (Typ) [custom]	20 ns	20 ns
Rise / Fall Time (Typ) [custom]	25 ns	25 ns
Supplier Device Package	Module	Module
Voltage - Supply [Max]	15.5 V	15.5 V
Voltage - Supply [Min]	14.5 V	14.5 V

IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: YES

Part	Package / Case	Number of Drivers	Mounting Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Gate Type	Operating Temperature [Max]	Operating Temperature [Min]	Channel Type	Voltage - Supply [Min]	Voltage - Supply [Max]	High Side Voltage - Max (Bootstrap) [Max]	Supplier Device Package	Driven Configuration
Power Integrations 2SC0535T2A1-33	Module	2	Surface Mount	35 A	35 A	20 ns	25 ns	IGBT	85 °C	-40 °C	Independent	14.5 V	15.5 V	3300 V	Module	High-Side, Low-Side
Power Integrations 2SC0535T2G0-33	Module	2	Surface Mount	35 A	35 A	20 ns	25 ns	IGBT	85 C	-55 C	Independent	14.5 V	15.5 V	3300 V	Module	High-Side, Low-Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High-Side or Low-Side Gate Driver IC Module
