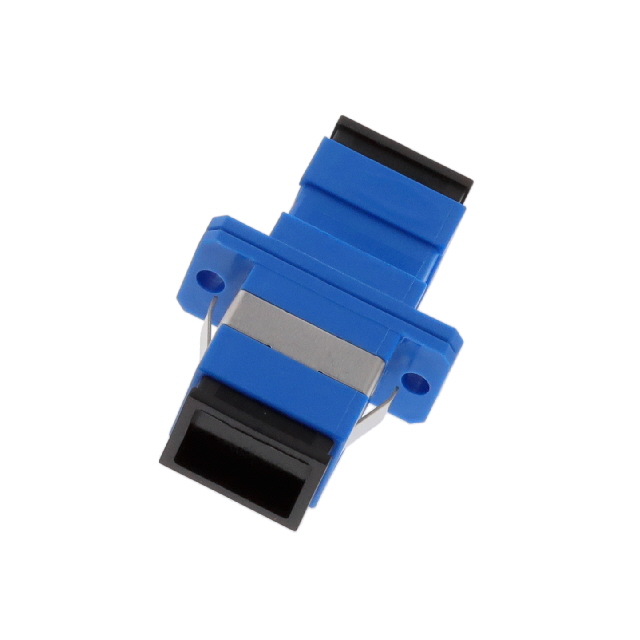

Specification	OPSB1ANNC1P1

Color	Blue
Convert From (Adapter End)	SC Receptacle
Convert To (Adapter End)	SC Receptacle
Ferrule Material	Zirconia, Ceramic
Housing Material	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Snap-In, Flange, Panel Mount
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-40 °C
Simplex/Duplex	Simplex
Type	Coupler

OPSB1ANNC Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Color	Mounting Type	Housing Material	Type	Convert To (Adapter End)	Ferrule Material	Simplex/Duplex	Convert From (Adapter End)
Adam Tech OPSB1ANNC1N1	75 °C	-40 °C	UL94 V-0	Blue	Flange Panel Mount	PBT Polybutylene Terephthalate	Coupler	SC Receptacle	Ceramic Zirconia	Simplex	SC Receptacle
Adam Tech OPSB1ANNC1P1	75 °C	-40 °C	UL94 V-0	Blue	Flange Panel Mount Snap-In	PBT Polybutylene Terephthalate	Coupler	SC Receptacle	Ceramic Zirconia	Simplex	SC Receptacle
Adam Tech OPSB1ANNC1N1T3	85 °C	-40 °C	UL94 V-0	Blue	Board Mount	PBT Polybutylene Terephthalate	Coupler	SC Receptacle		Simplex	SC Receptacle
