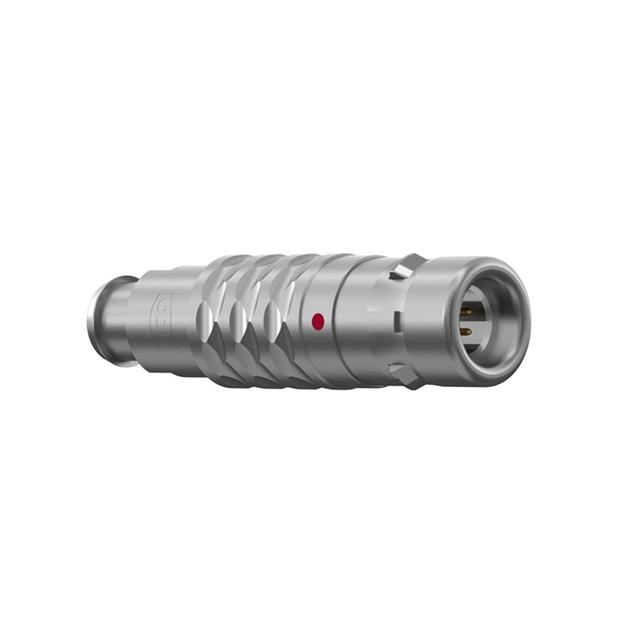

A21K0C-PD8MCD0-700S

Active

ODU

ODU MINI-SNAP PLUG, STY 2, SZ 1,

Search across all available documentation for this part.

Active

ODU

ODU MINI-SNAP PLUG, STY 2, SZ 1,

Technical Specifications

Parameters and characteristics for this part

Specification	A21K0C-PD8MCD0-700S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [custom]	0.276 in
Cable Opening [Max] [custom]	7 mm
Cable Opening [Min] [custom]	6.5 mm
Cable Opening [Min] [custom]	0.256 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	1
Shielding	Shielded
Voltage Rating	333 V

ODU MINI-SNAP PLUG, STY 2, SZ 1,

Part	Orientation	Shielding	Insert Material	Features	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Material	Contact Finish - Mating	Primary Material	Shell Size - Insert	Shell Finish	Mounting Type	Voltage Rating	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Fastening Type	Backshell Material, Plating	Number of Positions	Contact Material	Current Rating (Amps)
ODU A21K0C-PD8MCD0-700S	0	Shielded	Polyetheretherketone (PEEK)	Backshell, Strain Relief	IP68 - Dust Tight, Waterproof	6.5 mm	0.276 in	7 mm	0.256 in	Brass	Gold	Metal	1	Chrome over Nickel	Free Hanging (In-Line)	333 V	Silver	Male Pins, Plug	-40 °C	120 °C	Industrial, Medical, Military, Testing Equipment & Measurement	Push-Pull	Brass, Chrome over Nickel	8	Brass	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.56

General part information

8 Position Circular Connector Plug, Male Pins Solder Cup
