CONN EDGE DUAL FML 102POS 0.100

395-102-525-201

Active

EDAC Inc.

CONN EDGE DUAL FML 102POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

395-102 Series

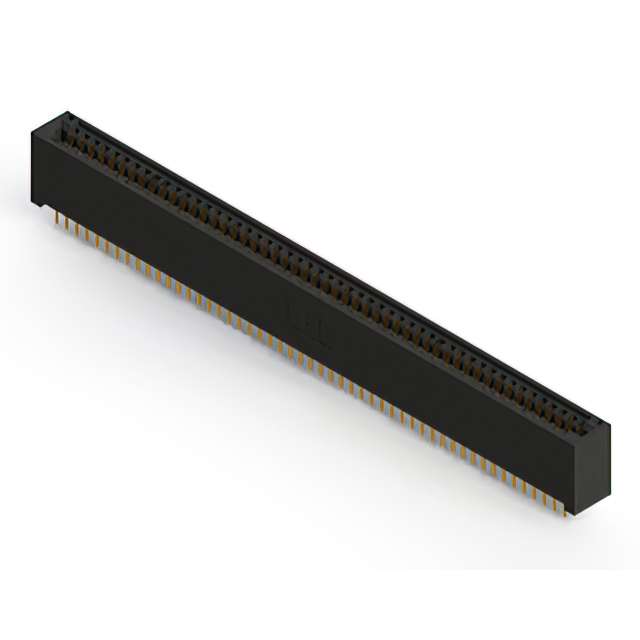

102 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	395-102-525-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	51, 102
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

395-102 Series

...

Part	Termination	Contact Type	Pitch	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Contact Material	Number of Rows	Mounting Type	Card Type	Contact Finish Thickness	Gender	Card Thickness (Min)	Card Thickness (Max)	Color	Read Out	Material - Insulation	Termination Rows	Flange Feature	Flange Feature Diameter	Features
EDAC Inc. 395-102-525-201	Solder	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows
EDAC Inc. 395-102-520-208	Solder	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 395-102-559-212	Solder	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Right Angle Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	Flush Mount Side Opening Unthreaded	0.128 in
EDAC Inc. 395-102-558-812	Solder	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Right Angle Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	Side Mount Opening Unthreaded	0.128 in
EDAC Inc. 395-102-555-588	Solder Eyelet(s)	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Board Edge Straddle Mount	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	4-40 Threaded Insert Top Mount Opening		Card Extender Card Guides
EDAC Inc. 395-102-544-803	Wire Wrap	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 395-102-523-288	Solder	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 395-102-558-258	Solder	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Right Angle Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 395-102-525-804	Solder	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	Top Mount Opening Unthreaded	0.156 in
EDAC Inc. 395-102-544-258	Wire Wrap	Cantilever	0.1 in	Gold	-40 °C	105 °C	51 102	Copper Alloy	2	Through Hole	Dual Edge Non Specified	10 Ąin	Female	0.054 in	0.07 in	Black	Dual	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening		Card Guides
