2264-1032-AL
ActiveRAF Electronic Hardware
3/8 HEX X 2-1/4 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
2264-1032-AL
ActiveRAF Electronic Hardware
3/8 HEX X 2-1/4 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2264-1032-AL |
|---|---|
| Between Board Height | 2.25 in |
| Between Board Height | 57.15 mm |
| Diameter - Outside | 0.375 in, 9.53 mm |
| Diameter - Outside [custom] | 0.375 in |
| Gender | Female |
| Length - Overall [x] | 2.25 in |
| Length - Overall [x] | 57.15 mm |
| Material | Aluminum |
| Screw, Thread Size | #10-32 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.92 | |
| 5 | $ 3.33 | |||
| 10 | $ 3.12 | |||
| 25 | $ 2.88 | |||
| 50 | $ 2.72 | |||
| 100 | $ 2.58 | |||
| 250 | $ 2.42 | |||
| 500 | $ 2.31 | |||
| 1000 | $ 2.21 | |||
Description
General part information
2264-1032 Series

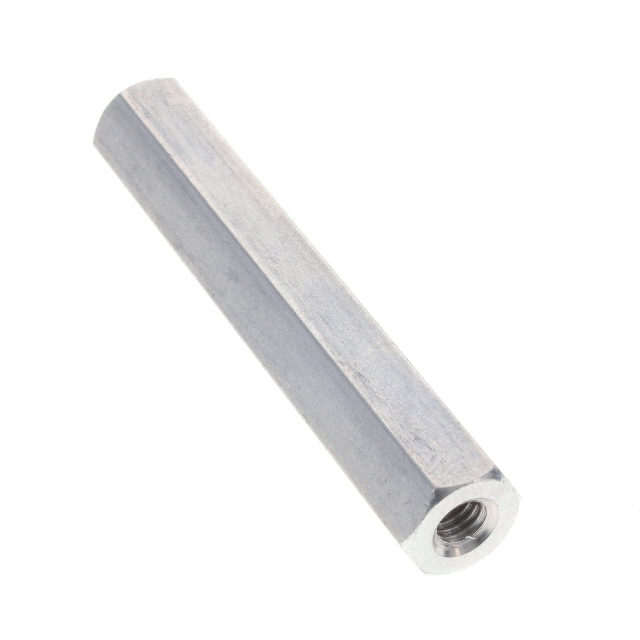

Hex Standoff Threaded #10-32 Aluminum 2.250" (57.15mm)
