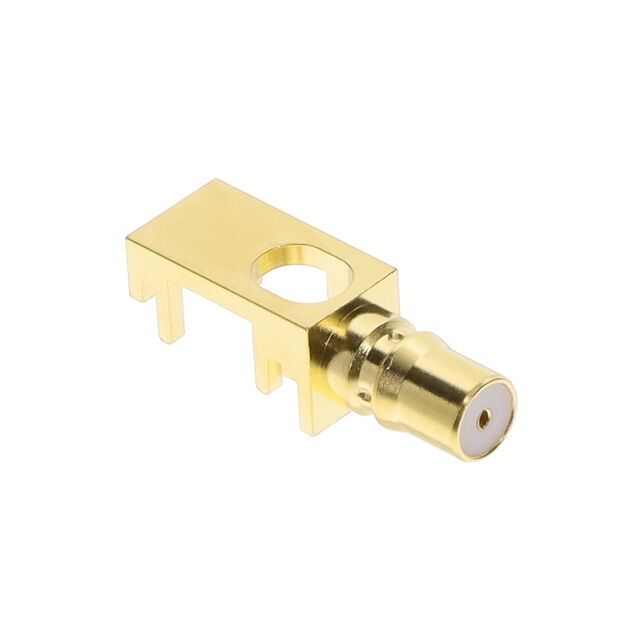

930-159J-51S

Active

Amphenol RF

QMA EDGE MOUNT PCB JACK, THROUGH

Search across all available documentation for this part.

Active

Amphenol RF

QMA EDGE MOUNT PCB JACK, THROUGH

Technical Specifications

Parameters and characteristics for this part

Specification	930-159J-51S

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Panel Mount, End Launch, Board Edge
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Fastening Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Frequency - Max [Max]	Center Contact Material	Shield Termination	Mounting Type	Voltage Rating	Body Material	Connector Type	Body Finish	Impedance	Center Contact Plating	Number of Ports	Housing Color
Amphenol RF 930-159J-51S	Snap-On	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Solder	6000 MHz	Beryllium Copper	Solder	Board Edge End Launch Panel Mount	480 V	Brass	Female Socket Receptacle	Gold	50 Ohms	Gold	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

QMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount Solder
