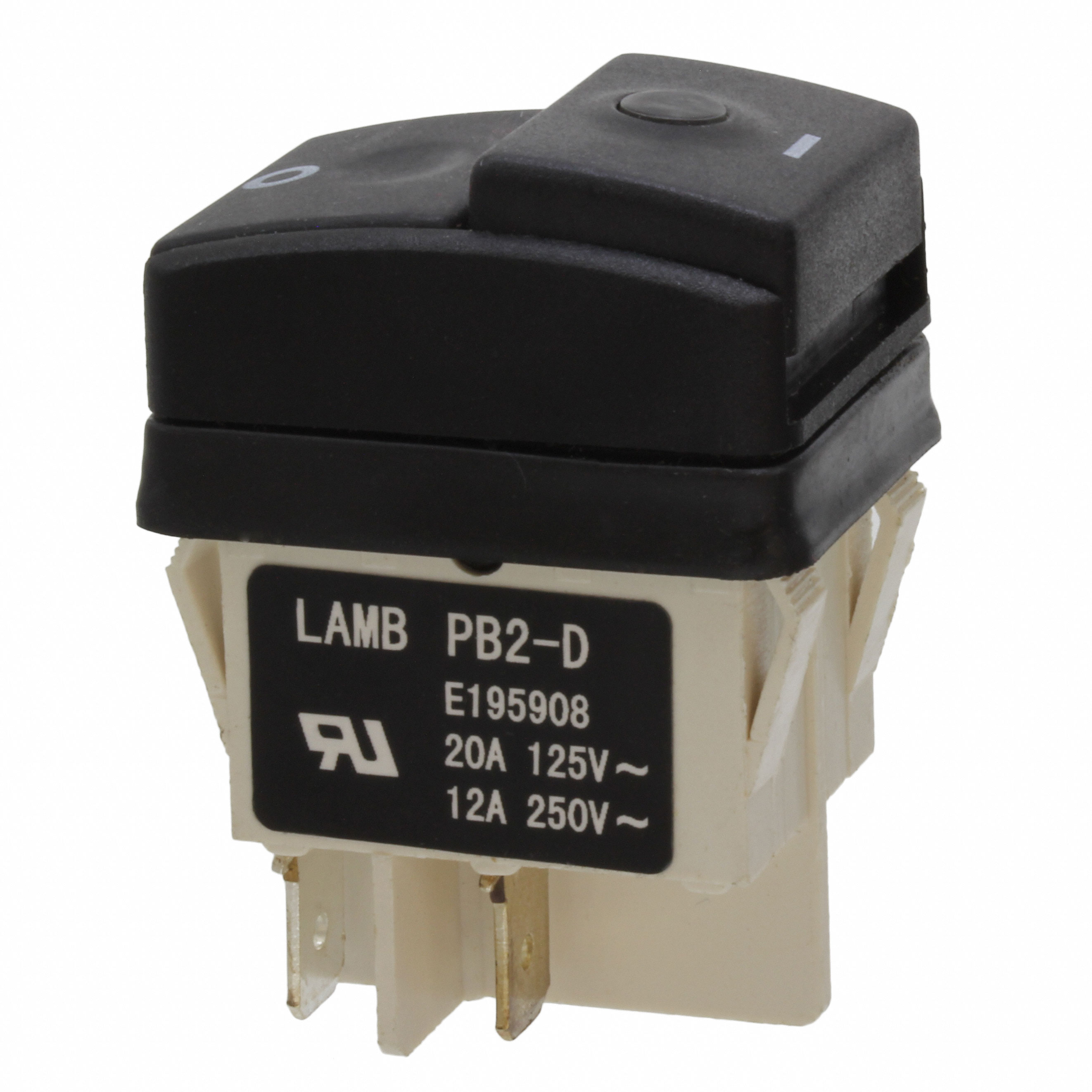

PB242D212R-207T

Active

E-Switch

SWITCH PUSHBUTTON DPST 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON DPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	PB242D212R-207T

Actuator Marking	No Marking
Actuator Type	Dual, Square, Button
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Illuminated, Standard
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Switch Function	Actuator Marking	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mounting Type	Circuit	Current Rating (Amps)	Actuator Type	Color - Actuator/Cap	Termination Style	Electrical Life
E-Switch PB242D212R-207T	30 mm	22 mm	Illuminated Standard	Off-On	No Marking	125 V	85 °C	-20 C	IP54 - Dust Protected Water Resistant	Panel Mount Snap-In	DPST	20 A	Button Dual Square	Black	Quick Connect - 0.250" (6.3mm)	10000 Cycles
E-Switch PB242D1A2R-236	30 mm	22 mm	Illuminated Standard	Off-On	No Marking	125 V	85 °C	-20 C	IP54 - Dust Protected Water Resistant	Panel Mount Snap-In	DPST	20 A	Button Dual Square	Green Red	Quick Connect - 0.250" (6.3mm)	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 3.69

General part information

Pushbutton Switch DPST Standard, Illuminated Panel Mount, Snap-In
