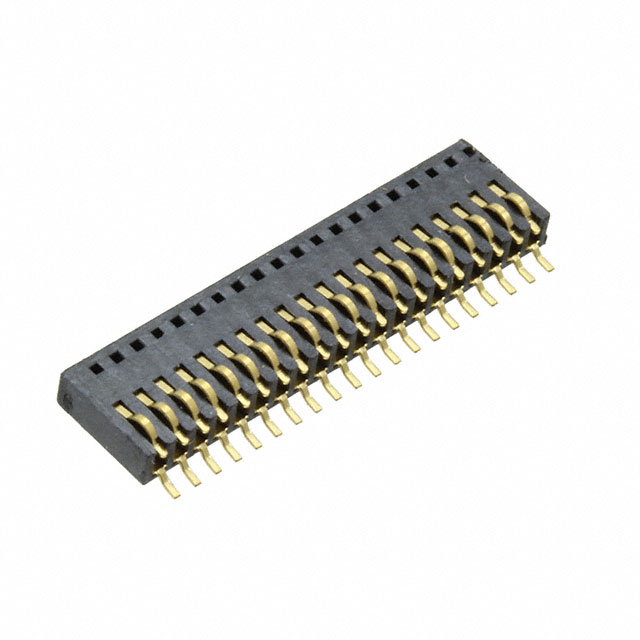

SEI-120-02-G-S-AB

Active

Samtec Inc.

CONN SPRING MOD 20POS SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SPRING MOD 20POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SEI-120-02-G-S-AB

Connector Type	Compression Contact, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Phosphor Bronze
Mounting Type	Surface Mount
Number of Rows	1
Pitch [x]	0.039 in
Pitch [x]	1 mm

Board to Board & Mezzanine Connectors 1.00 mm Single Row One-Piece Interface

Part	Connector Type	Contact Finish	Material	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. SEI-120-02-GF-S-AB-TR	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	3 Áin	0.076 Ám
Samtec Inc. SEI-120-02-G-S-M-AB	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	10 Áin	0.25 Ám
Samtec Inc. SEI-120-02-GF-S-E	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	3 Áin	0.076 Ám
Samtec Inc. SEI-120-02-G-S-TR	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	10 Áin	0.25 Ám
Samtec Inc. SEI-120-02-GF-S-M-TR	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	3 Áin	0.076 Ám
Samtec Inc. SEI-120-02-GF-S-E-AT-TR	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	3 Áin	0.076 Ám
Samtec Inc. SEI-120-02-G-S-AB	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	10 Áin	0.25 Ám
Samtec Inc. SEI-120-02-G-S-E-AB	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	10 Áin	0.25 Ám
Samtec Inc. SEI-120-02-GF-S-M	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	3 Áin	0.076 Ám
Samtec Inc. SEI-120-02-G-S	Compression Contact Non-Gendered	Gold	Phosphor Bronze	Surface Mount	0.039 in	1 mm	1	10 Áin	0.25 Ám
