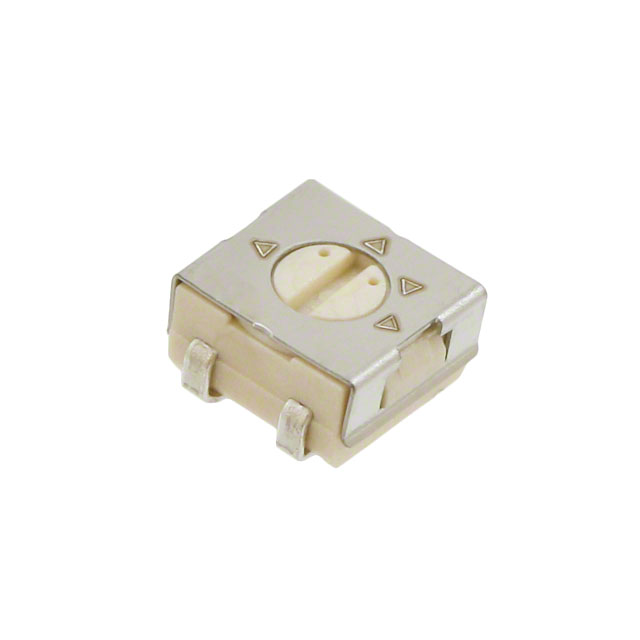

23AR20KLFTR
ActiveTT Electronics/BI
TRIMMER 20K OHM 0.25W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
23AR20KLFTR
ActiveTT Electronics/BI
TRIMMER 20K OHM 0.25W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 23AR20KLFTR | 23AR Series |
|---|---|---|
| Adjustment Type | Top Adjustment | Top Adjustment |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Turns | 1 | 1 |
| Power (Watts) | 0.25 W | 0.25 W |
| Power (Watts) | 250 mW | 250 mW |
| Resistance | 20 kOhms | 1 - 500 kOhms |
| Resistive Material | Cermet | Cermet |
| Size / Dimension [x] | 0.197 in | 0.197 - 0.2 in |
| Size / Dimension [x] | 5 mm | 5 - 5.08 mm |
| Size / Dimension [y] | 0.177 " | 0.177 - 0.18 " |
| Size / Dimension [y] | 4.5 mm | 4.5 - 4.57 mm |
| Temperature Coefficient | 100 ppm/°C | 100 ppm/°C |
| Termination Style | J Lead | J Lead |
| Tolerance | 20 % | 20 % |
23AR Series
TRIMMER 20K OHM 0.25W J LEAD TOP
| Part | Number of Turns | Adjustment Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Termination Style | Mounting Type | Resistance | Resistive Material | Power (Watts) | Power (Watts) | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI 23AR20KLFTR | 1 | Top Adjustment | 0.197 in | 0.177 " | 5 mm | 4.5 mm | 20 % | J Lead | Surface Mount | 20 kOhms | Cermet | 0.25 W | 250 mW | 100 ppm/°C |
TT Electronics/BI 23AR5KTR | 1 | Top Adjustment | 0.197 in | 0.177 " | 5 mm | 4.5 mm | 20 % | J Lead | Surface Mount | 5 kOhms | Cermet | 0.25 W | 250 mW | 100 ppm/°C |
TT Electronics/BI 23AR500KLFTR | 1 | Top Adjustment | 0.2 in | 0.18 in | 5.08 mm | 4.57 mm | 20 % | J Lead | Surface Mount | Cermet | 0.25 W | 250 mW | 100 ppm/°C | |
TT Electronics/BI 23AR500LFTR | 1 | Top Adjustment | 0.197 in | 0.177 " | 5 mm | 4.5 mm | 20 % | J Lead | Surface Mount | 500 Ohms | Cermet | 0.25 W | 250 mW | 100 ppm/°C |
TT Electronics/BI 23AR1MEGLFTR | 1 | Top Adjustment | 0.2 in | 0.18 in | 5.08 mm | 4.57 mm | 20 % | J Lead | Surface Mount | 1 MOhms | Cermet | 0.25 W | 250 mW | 100 ppm/°C |
TT Electronics/BI 23AR5KLFTR | 1 | Top Adjustment | 0.197 in | 0.177 " | 5 mm | 4.5 mm | 20 % | J Lead | Surface Mount | 5 kOhms | Cermet | 0.25 W | 250 mW | 100 ppm/°C |
TT Electronics/BI 23AR50KLFTR | 1 | Top Adjustment | 0.197 in | 0.177 " | 5 mm | 4.5 mm | 20 % | J Lead | Surface Mount | 50 kOhms | Cermet | 0.25 W | 250 mW | 100 ppm/°C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.53 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.23 | |||
| 250 | $ 1.13 | |||
| Digi-Reel® | 1 | $ 1.91 | ||
| 10 | $ 1.53 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.23 | |||
| 250 | $ 1.13 | |||
| Tape & Reel (TR) | 500 | $ 1.05 | ||
| 1000 | $ 0.98 | |||
| 1500 | $ 0.95 | |||
| 2500 | $ 0.90 | |||
| 3500 | $ 0.87 | |||
| 5000 | $ 0.84 | |||
| 12500 | $ 0.77 | |||
Description
General part information
23AR Series
20 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
