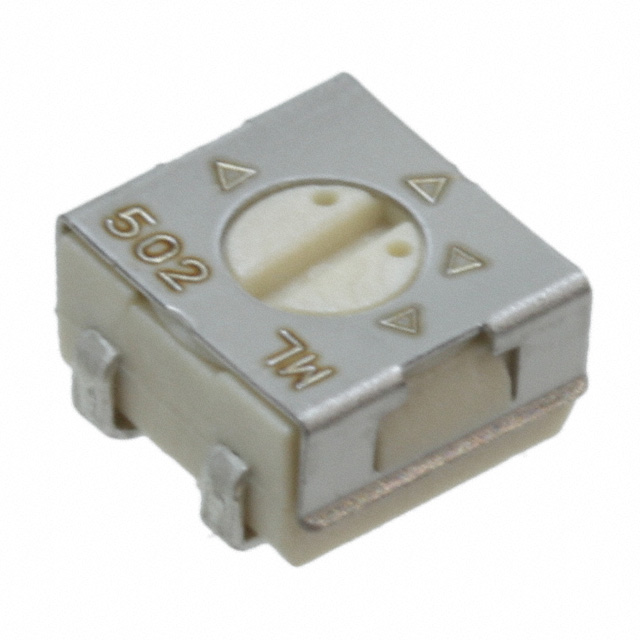

23AR5KLFTR

Active

TT Electronics/BI

TRIMMER 5K OHM 0.25W J LEAD TOP

Search across all available documentation for this part.

Active

TT Electronics/BI

TRIMMER 5K OHM 0.25W J LEAD TOP

Technical Specifications

Parameters and characteristics commom to parts in this series

TRIMMER 20K OHM 0.25W J LEAD TOP

Part	Number of Turns	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Termination Style	Mounting Type	Resistance	Resistive Material	Power (Watts)	Power (Watts)	Temperature Coefficient
TT Electronics/BI 23AR20KLFTR	1	Top Adjustment	0.197 in	0.177 "	5 mm	4.5 mm	20 %	J Lead	Surface Mount	20 kOhms	Cermet	0.25 W	250 mW	100 ppm/°C
TT Electronics/BI 23AR5KTR	1	Top Adjustment	0.197 in	0.177 "	5 mm	4.5 mm	20 %	J Lead	Surface Mount	5 kOhms	Cermet	0.25 W	250 mW	100 ppm/°C
TT Electronics/BI 23AR500KLFTR	1	Top Adjustment	0.2 in	0.18 in	5.08 mm	4.57 mm	20 %	J Lead	Surface Mount		Cermet	0.25 W	250 mW	100 ppm/°C
TT Electronics/BI 23AR500LFTR	1	Top Adjustment	0.197 in	0.177 "	5 mm	4.5 mm	20 %	J Lead	Surface Mount	500 Ohms	Cermet	0.25 W	250 mW	100 ppm/°C
TT Electronics/BI 23AR1MEGLFTR	1	Top Adjustment	0.2 in	0.18 in	5.08 mm	4.57 mm	20 %	J Lead	Surface Mount	1 MOhms	Cermet	0.25 W	250 mW	100 ppm/°C
TT Electronics/BI 23AR5KLFTR	1	Top Adjustment	0.197 in	0.177 "	5 mm	4.5 mm	20 %	J Lead	Surface Mount	5 kOhms	Cermet	0.25 W	250 mW	100 ppm/°C
TT Electronics/BI 23AR50KLFTR	1	Top Adjustment	0.197 in	0.177 "	5 mm	4.5 mm	20 %	J Lead	Surface Mount	50 kOhms	Cermet	0.25 W	250 mW	100 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
