1211A 0101000

Active

Belden Inc.

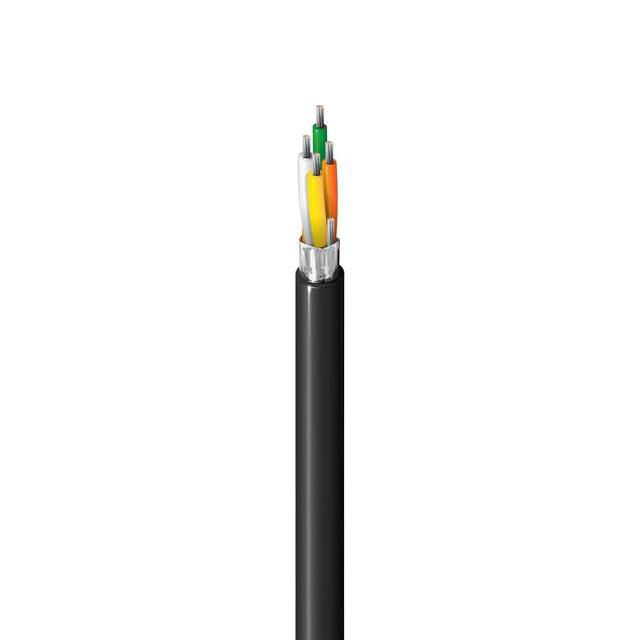

CABLE 4COND 26AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 26AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	1211A 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.914 mm
Jacket (Insulation) Thickness	0.036 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	26 AWG

CABLE 4COND 26AWG BLK SHLD

Part	Conductor Strand	Shield Type	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Insulation	Voltage	Features	Wire Gauge	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Number of Conductors	Shield Coverage	Jacket Color	Usage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type
Belden Inc. 1211A 0101000	7 Strands, 34 AWG	Foil	1000 ft	304.8 m	0.914 mm	0.036 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 V	Drain Wire	26 AWG	Aluminum	-20 C	80 C	UL Style 2464	4	100 %	Black	Instrumentation	Copper, Tinned	0.195 in	4.95 mm	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.56

General part information

4 Conductor Multi-Conductor Cable Black 26 AWG Foil 1000.0' (304.8m)
