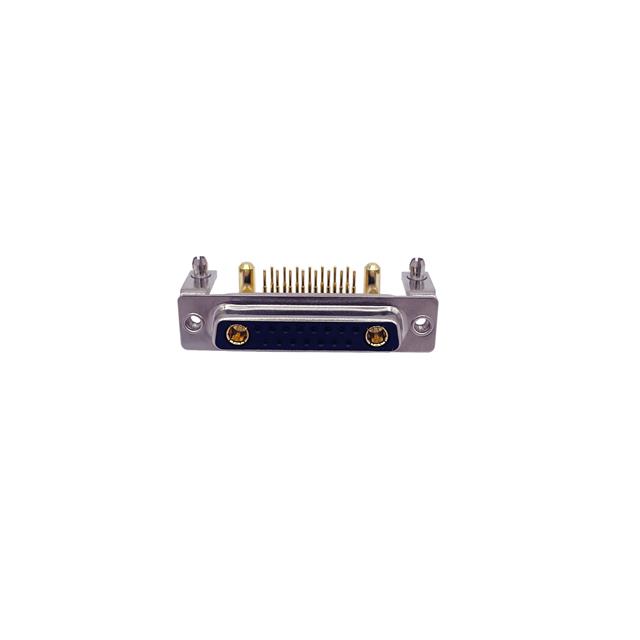

684M17W2203L621 - 684M17W2203L621

684M17W2203L621

Active
MH Connectors

COMBO D-SUB CONN, RCPT, DB-17W2, TH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetDrawing EN+2

Technical Specifications

Parameters and characteristics for this part

Specification684M17W2203L621
Backset Spacing9.4 mm
Backset Spacing0.37 in
ColorBlack
Connector StyleD-Sub, Combo
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypeSignal and Power
Current Rating (Amps)40 A, 5 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
FeaturesBoard Lock, Mounting Brackets
Flange FeatureHousing/Shell (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Board Edge
Number of Positions [custom]15
Number of Positions [custom]2
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout17W2, 3 (DB, B)
TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 16.71
10$ 14.48
25$ 13.73
50$ 13.53
100$ 11.94
250$ 11.14
450$ 10.90
950$ 10.35
NewarkEach 1$ 16.79
10$ 13.69
25$ 12.78
50$ 11.86
100$ 11.15
250$ 10.59

Description

General part information

684M17W Series

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
