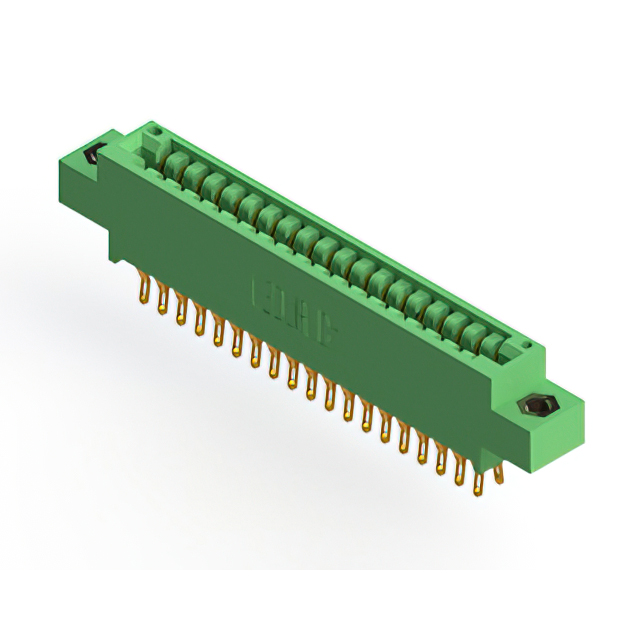

846-038-555-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-038-555-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-038-555-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
846-038 Series
...
| Part | Mounting Type | Flange Feature | Material - Insulation | Contact Type | Number of Positions/Bay/Row [custom] | Contact Finish | Termination | Contact Material | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Gender | Pitch [x] | Pitch [x] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Number of Rows | Color | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | M3 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | Cantilever | 19 | Gold | Solder Eyelet(s) | Copper Alloy | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Green | |||||
EDAC Inc. | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Cantilever | 19 | Gold | Solder Eyelet(s) | Copper Alloy | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Green | |||||
EDAC Inc. | Board Edge Straddle Mount | M3 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | Cantilever | 19 | Gold | Solder Eyelet(s) | Copper Alloy | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Green | Card Extender | ||||
EDAC Inc. | Through Hole Right Angle | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | Cantilever | 38 | Gold | Solder | Copper Alloy | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Green | |||||
EDAC Inc. | Through Hole | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Cantilever | 19 | Gold | Solder | Copper Alloy | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Green | 3.96 mm | 0.156 in | |||
EDAC Inc. | Through Hole | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Cantilever | 38 | Gold | Solder | Copper Alloy | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Green | 3.25 mm | 0.128 " | |||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | Cantilever | 38 | Gold | Solder | Copper Alloy | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Green | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Through Hole | Flush Mount Side Opening Unthreaded | Diallyl Phthalate (DAP) | Cantilever | 38 | Gold | Solder | Copper Alloy | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Green | 3.25 mm | 0.128 " | |||
EDAC Inc. | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Cantilever | 38 | Gold | Wire Wrap | Copper Alloy | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Green | |||||
EDAC Inc. | Through Hole | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | Cantilever | 19 | Gold | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | Female | 0.125 in | 3.18 mm | 38 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Green | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-038 Series
38 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
