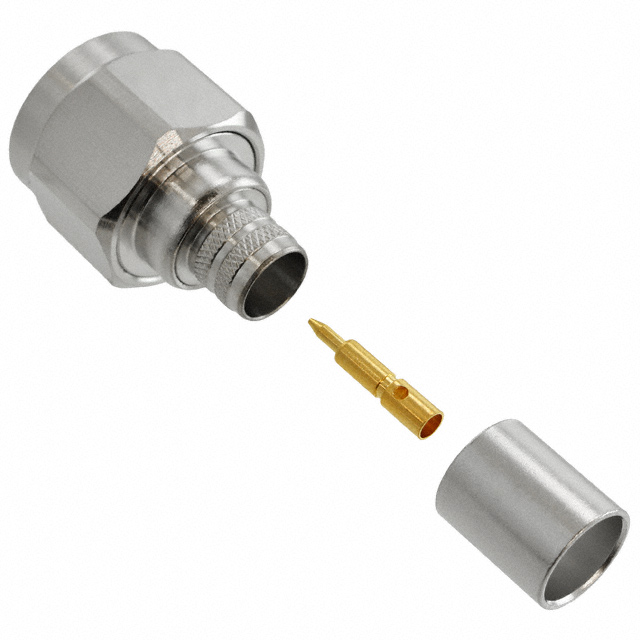

172102H243HEX

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

172102H243HEX

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172102H243HEX

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-400, Belden 9913, Belden 9914
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

172102 Series

Part	Dielectric Material	Frequency - Max [Max]	Housing Color	Center Contact Material	Ingress Protection	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Voltage Rating	Mating Cycles	Center Contact Plating	Mounting Type	Connector Type	Shield Termination	Cable Group	Body Material	Body Finish	Number of Ports	Contact Termination	Impedance	Includes
Amphenol RF 172102H243HEX	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Brass	Weatherproof	0.15 dB	-65 ░C	165 °C	N Type	1500 V	500	Gold	Free Hanging (In-Line)	Male Pin Plug	Crimp	Belden 9913 Belden 9914 LMR-400	Brass	White Bronze	1	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule
Amphenol RF 172102H243RP	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Phosphor Bronze		0.15 dB	-65 ░C	165 °C	RP-N Type	1500 V	500	Gold	Free Hanging (In-Line)	Female Socket Plug	Crimp	Belden 9913 Belden 9914 LMR-400	Brass	White Bronze	1	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule
Amphenol RF 172102NEX-10	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Brass		0.15 dB	-65 ░C	165 °C	N Type	1500 V	500	Gold	Free Hanging (In-Line)	Male Pin Plug	Crimp	213 393 RG-8	Brass	White Bronze	1	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule
Amphenol RF 172102H243-11	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Brass	Weatherproof	0.15 dB	-65 ░C	165 °C	N Type	1500 V	500	Gold	Free Hanging (In-Line)	Male Pin Plug	Crimp	Belden 9913 Belden 9914 LMR-400	Brass	White Bronze	1	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule
Amphenol RF 172102H243NX-10	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Brass	Weatherproof	0.15 dB	-65 ░C	165 °C	N Type	1500 V	500	Gold	Free Hanging (In-Line)	Male Pin Plug	Crimp	Belden 9913 Belden 9914 LMR-400	Brass	White Bronze	1	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.08
		10	$ 12.48
		25	$ 12.00
		50	$ 11.52
		100	$ 10.88
		300	$ 9.92
		500	$ 9.28
		1000	$ 8.51

Description

General part information

172102 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
