General part information

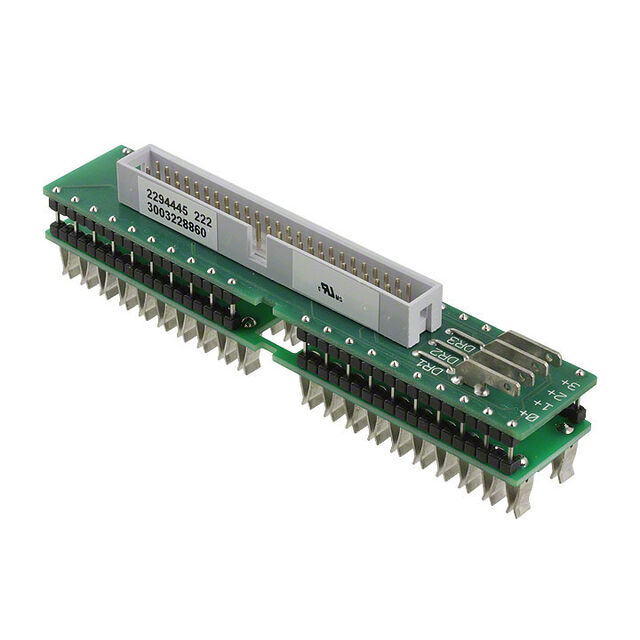

Adapter PLC S7-300 To Rectangular Connector, Male Pins, 50 Pos, 2 Rows
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2294445 | FLKM 50 Series |
|---|---|---|
| Convert From (Adapter End) | PLC S7-300 | Terminal Block, Plug Connection, PLC S7-400, PLC MODICON 984 Series 800, PLC S7-300, PLC Control-Logix, PlantScape, PLC S7-1500, PLC S5-115U, PLC SLC 500, 14 Pos, PLC MODICON TSX QUANTUM |
| Convert To (Adapter End) | 50 Pos, 2 Rows | 2 - 50 Pos |
| Convert To (Adapter End) | Male Pins, Rectangular Connector | Male Pins, Rectangular Connector, Rectangular Connector (4), Rectangular Connector (2) |
| Mounting Type | Board Mounted | Board Mounted, DIN Rail |
CONN TERM BLOCK
| Part | Convert From (Adapter End) | Mounting Type | Convert To (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|
Phoenix Contact 2321486 | Plug Connection, Terminal Block | Board Mounted | 2 Rows, 50 Pos | Male Pins, Rectangular Connector |
Phoenix Contact 2294429 | PLC S7-400 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (4) |
Phoenix Contact 2290038 | Board Mounted | 2 Rows, 16 Pos | Rectangular Connector (2) | |
Phoenix Contact 2289395 | PLC MODICON 984 Series 800 | Board Mounted | 50 Pos | Rectangular Connector |
Phoenix Contact 2296281 | PLC S7-300 | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (4) |
Phoenix Contact 2302735 | PlantScape, PLC Control-Logix | Board Mounted | 2 Rows, 50 Pos | Male Pins, Rectangular Connector |
Phoenix Contact 2907386 | PLC S7-1500 | DIN Rail | 2 Rows, 50 Pos | Male Pins, Rectangular Connector |
Phoenix Contact 2288561 | PLC S5-115U | Board Mounted | 2 Rows, 14 Pos | Rectangular Connector (4) |
Phoenix Contact 2907384 | PLC S7-1500 | DIN Rail | 2 Rows, 50 Pos | Male Pins, Rectangular Connector |
Phoenix Contact 2293446 | PLC SLC 500, 14 Pos | Board Mounted | 2 Rows, 50 Pos | Rectangular Connector |
