2296281

Active

Phoenix Contact

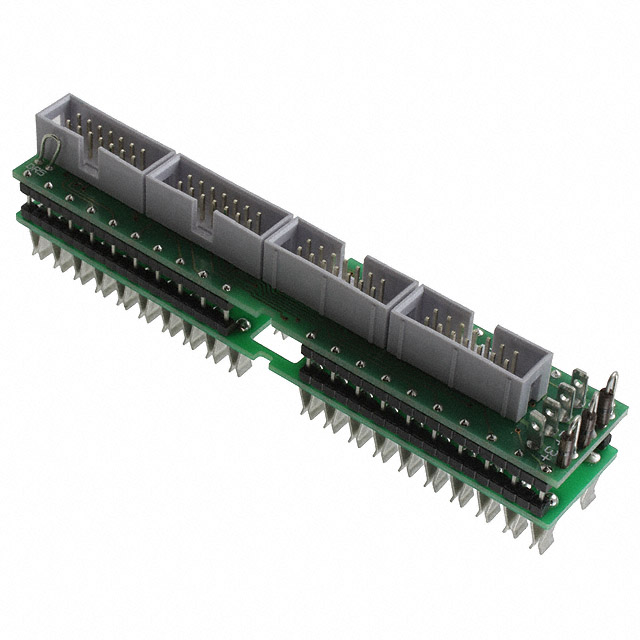

FRONT ADAPTER 4 X 8 CHANNELS

Search across all available documentation for this part.

Active

Phoenix Contact

FRONT ADAPTER 4 X 8 CHANNELS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter PLC S7-300 To Rectangular Connector (4), 14 Pos, 2 Rows

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2296281	FLKM 50 Series

Convert From (Adapter End)	PLC S7-300	Terminal Block, Plug Connection, PLC S7-400, PLC MODICON 984 Series 800, PLC S7-300, PLC Control-Logix, PlantScape, PLC S7-1500, PLC S5-115U, PLC SLC 500, 14 Pos, PLC MODICON TSX QUANTUM
Convert To (Adapter End)	Rectangular Connector (4)	Male Pins, Rectangular Connector, Rectangular Connector (4), Rectangular Connector (2)
Convert To (Adapter End)	2 Rows, 14 Pos	2 - 50 Pos
Mounting Type	Board Mounted	Board Mounted, DIN Rail

CONN TERM BLOCK

Part	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)
Phoenix Contact 2321486	Plug Connection, Terminal Block	Board Mounted	2 Rows, 50 Pos	Male Pins, Rectangular Connector
Phoenix Contact 2294429	PLC S7-400	Board Mounted	2 Rows, 14 Pos	Rectangular Connector (4)
Phoenix Contact 2290038		Board Mounted	2 Rows, 16 Pos	Rectangular Connector (2)
Phoenix Contact 2289395	PLC MODICON 984 Series 800	Board Mounted	50 Pos	Rectangular Connector
Phoenix Contact 2296281	PLC S7-300	Board Mounted	2 Rows, 14 Pos	Rectangular Connector (4)
Phoenix Contact 2302735	PlantScape, PLC Control-Logix	Board Mounted	2 Rows, 50 Pos	Male Pins, Rectangular Connector
Phoenix Contact 2907386	PLC S7-1500	DIN Rail	2 Rows, 50 Pos	Male Pins, Rectangular Connector
Phoenix Contact 2288561	PLC S5-115U	Board Mounted	2 Rows, 14 Pos	Rectangular Connector (4)
Phoenix Contact 2907384	PLC S7-1500	DIN Rail	2 Rows, 50 Pos	Male Pins, Rectangular Connector
Phoenix Contact 2293446	PLC SLC 500, 14 Pos	Board Mounted	2 Rows, 50 Pos	Rectangular Connector
