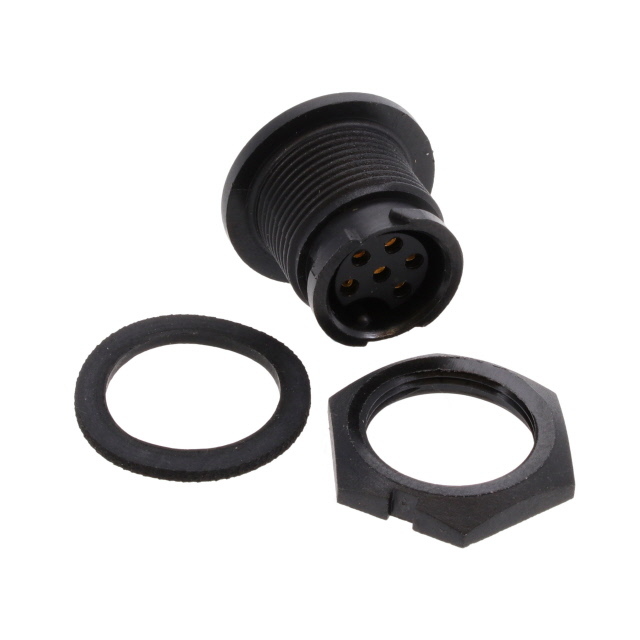

W7281-6SG-P-3ES

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	W7281-6SG-P-3ES

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VAC

CONN RCPT FMALE 6POS GOLD SOLDER

Part	Applications	Mounting Type	Termination	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insert Material	Primary Material	Contact Finish - Mating	Fastening Type	Orientation	Ingress Protection	Features	Connector Type	Current Rating (Amps)	Backshell Material, Plating	Color	Number of Positions	Mounting Feature	Voltage Rating
Conxall/Switchcraft W7281-6SG-P-3ES	Automotive, Communication Systems, Instrumentation	Panel Mount, Through Hole	Solder	Unshielded	85 °C	-40 °C	Copper Alloy	Thermoplastic	Plastic	Gold	Bayonet Lock	Keyed	IP66, IP67, IP68	UV Resistant	Receptacle, Female Sockets	Varies by Wire Gauge	Thermoplastic	Black	6	Bulkhead - Front Side Nut	300 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.80

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
