BU-2243-D-48-2
ActiveMueller Electric Co

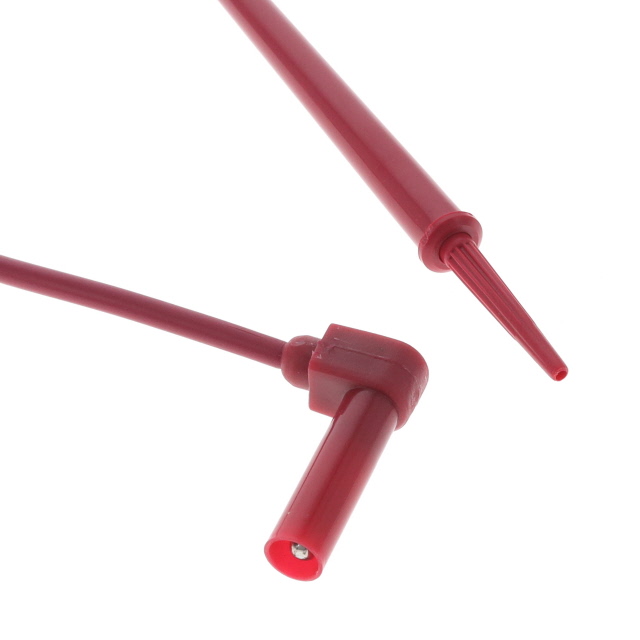

TEST LEAD, TEST TIP PROBE TO 4MM RIGHT ANGLE BANANA PLUG, RED, 600 V, 20 A, 1.22 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-2243-D-48-2 |
|---|---|
| 1st Connector | Banana Plug, Single, Sheathed, Right Angle |
| 2nd Connector | Test Probe |
| Cable Length | 48 in |
| Cable Length | 1219.2 mm |
| Configuration | Banana to Test Probe |
| Contents | Red |
| Contents [custom] | 1 |
| Current Rating (Amps) | 20 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Ratings | CAT II |
| Ratings | 600 V |
| Stacking Method | Non Stackable |
| Type | Patch Cord |
| Voltage - Rated | 600 VDC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-2243 Series
BU-2243-D red colored multiple feature test prod to shrouded right-angle banana plug. Test probe is fully insulated with PTFE except for the working end to prevent unwanted electrical contact with surrounding components.
